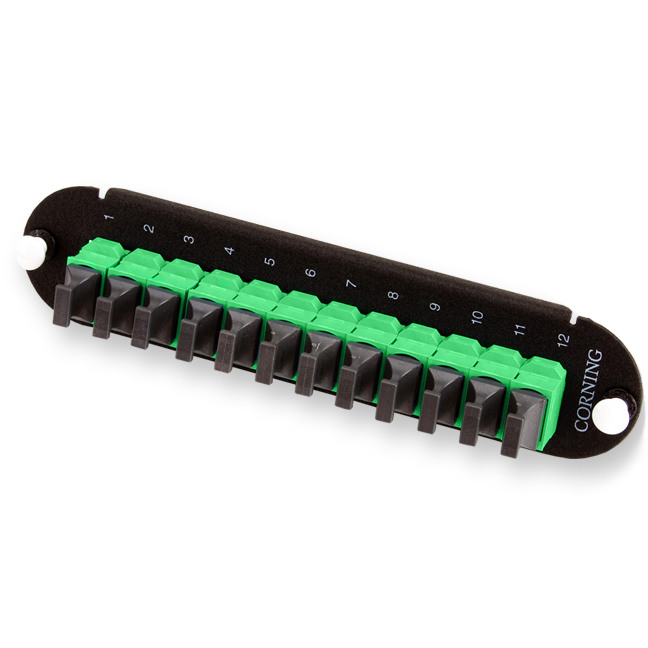

Corning Cable Closet Connector Housing Panel

(Model # CCH-CP12-6C)
Corning LANscape Closet Connector Housing Pigtail Modules

Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.

  • $495.07

  • Availability:
  • Usually ships in 10 days
  • Fiber Count
Closet Connector Housing Panel is used with field-installable connectors or in applications where the preconnectorized cable are routed directly from the equipment to the piece of interconnect hardware. The housing panel provides an efficient way to securely mate two or more connectors.
Housing Panel Features:
  • 12 Fiber Count
  • SC Adapter Code
  • Single-Mode, APC Fiber Type
  • Ceramic Alignment
  • Composite Housing
  • APC
  • 1 Fibers/Adapter
  • Designed to accommodate all industry-standard adapter types
  • Universal approach is used; one panel size fits in all standard LANscape Solutions hardware
  • Unique color-coded connector labeling system
SKU Fiber Count
CCH-CP12-6C-P03RH 12
CCH-CP06-6C-P03RH 6
CCH-CP08-6C-P03RH 8
CCH-CP16-6C-P03RH 16
CCH-CP24-6C-P03RH 24
CCH-CP36-6C-P03RH 36
CCH-CP72-6C-P03RH 72
CCH-CP144-6C-P03RH 144
