Corning Pretium EDGE® Solutions Housing, 4 Rack Unit Fixed Fiber Zone Box
(Model # EDGE-FZB-04U)
Product Brochure (pdf)
Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.
Pretium EDGE® Solutions housing provides a cross-connect for first level backbone cables, entrance cables and equipment cables. In the equipment distribution area, the housing is an interconnect to system equipment such as SAN switches, servers and IP switches. Accommodates the mixing and matching of multiple Pretium EDGE Solutions modules and panels within one chassis.
Main Features:
- Housing Type: Pretium EDGE® Fixed
- Robust lock provides additional security
- Multi-position bulkhead increases ease of use in subfloor/overhead applications
- Removable back plate allows easy installation and accessibility of modules and panels
- Accommodates Pretium EDGE® Solutions modules and panels industry leading fiber density
- Includes four rack units of 19-in rack space allows for copper and fiber installation options
- Universal wired components enable moves, adds and changes without polarity concerns; provide a simple migration path between 2-fiber and parallel optic applications
Product Specifications:
- Application: Data Center LAN/SAN
- Number of Panels per Housing: 32
- Dimensions: 9-1/2" H x 20-3/4" W x 20-3/4" D
- RoHS Compliant: Yes, 2002/95/EG
Also Suggested
-
Model # CCH-UM24-05-93T
Corning Plug & PlayTM Universal Module, Low-Loss, 24 F, Shuttered LC to MTP®, 50 µm Multimode (OM3)
$820.50 -
Model # ECM-UM12-04-89G
Corning 12 Fiber Pretium EDGE® Bend-Improved Single-Mode LC Duplex to MTP® Module Connector, Blue
$510.28 -
Model # ECM-UM12-05-93T
Corning 12 Fiber Pretium EDGE® LC Duplex to MTP® Connector Module, 50 µm multimode (OM3)
$466.21 -
Model # EDGE-04U
Corning Pretium EDGE® 4 Rack Housing Unit, for Pretium EDGE® Solution Modules and Panels
$1,094.17 -
Model # EDGE-CP48-E3

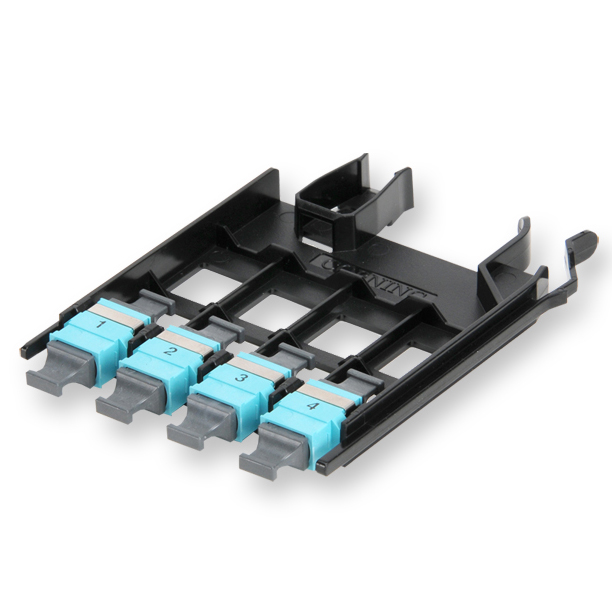

Corning 48-fiber MTP® Adapter Panel for 50 µm Multimode (OM4/OM3) Solutions, Aqua
