Allen Tel Weather Resistant Phone Enclosure(Model # GB90H)
Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.
Phone Enclosure Features:
- Weather Resistant Housing die cast Aluminum Housing
- Use Adapter Frame GB5955-LAF to mount standard wall phones
- Available Colors:
- Door Hinge Configuration:
- Spring Loaded
- Door Lock Options:
- Plastic Push Latch (Always Unlocked)
- Plastic Push Latch with Metal Keys (Can be left Unlocked or Locked)
- Metal Push Latch with Metal Keys (Always Locked)
- Logo Text Options for Door Enclosure:
- Model # GB5955PMB Pole Mounting Bracket
- Model # AT630A-4 Stainless Steel Wallplate
- Model # GB5955-LAF Adapter Frame Bracket
Quality, reliability and durability - three reasons why AllenTel Weatherproof telephones have been successful for over 45 years. The housings are constructed of die cast aluminum and electrostatically deposited tough enamel finish. The hardware on the GB5955H housing includes a stainless steel hasp latch, which will also accept a padlock. The GB90 Series of telephones uses a newly designed housing incorporating either a push latch or a push key lock. All housings are equipped with gaskets and the Legend Telephone.
The Variety of complete telephone models offered includes speaker phones and single line units using pulse, tone or automatic dialing. Replacement telephone sets are available with out housing.
AllenTel's full line of Weatherproof/Emergency telephones are particularly suited for use on college campuses, airports, parking garages and industrial locations. Speakerphone models may not operate properly in environments with high ambient noise levels. In those areas we recommend our handset models featuring an armored cord. In accordance with FCC regulations, all handsets furnished with AllenTel Weatherproof telephones are equipped with hearing aid compatible, amplified receivers.
Need to know the exact dimensions of AllenTel's weatherproof enclosures? Click Here for the full specifications.
Note: All tel sets are equipped with amplified handset and 29" amored cord.
Example: The GB92V-00 consists of GB90 housing with telephone legend on door and a single line panel mounted tel set. Includes a 6 foot black coil cord, amplified receiver, and standard plastic dial. Equipped with GBH4WP 14" Armored Cord (29" Armored Cord included on all GB70V/72V Series tel sets). Note: The K lock is constructed of high impact plastic. For special key applications please contact the factory.
AllenTel ADA Weatherproof Telephones
AllenTel ADA products meet or exceed current AMERICANS WITH DISABILITIES ACTS requirements and feature amplified receivers per FCC regulations.
The GB70 Series Telephones are offered in three models. The GB70VS featuring an automatic single number dialer, the GB70VN, particularly suited for automatic ring down circuit and the GB73V model with a 12 button tone dial.
The weatherproof housing is constructed of die cast aluminum and electrostically deposited tough enamel finish. The GB70H housing incorporates a push key lock. The push latch may be disengaged in order to meet local ADA requirements. All housings are equipped with gaskets.
All models include:
- Handset with a 29" armored cord
- Amplified receiver
- Spring loaded door
- Braille labes
- ID tones
- 2 LED lamps
Note: All GB70H housings feature a spring loaded door. XX denotes housing color- 00 Black, 02 Red, 04 Yellow, 14 Gray, Other colors available on special order.
The GB31932 Steel Protective Cover measures 12" H X 10" W X 4" D and will accept most telephone sets. Finished in red baked enamel.
The GB31858 Weatherproof System Phone Enclosure is designed to provide protection for outdoor installations against rain, sleet and snow. Accepts most features and key system wall mountable telephones. A plywood backboard with mounting holes for the "optional" GB5955LAF Adapter Frame Bracket bracket is provided with this enclosure. Meets NEMD/EEMAC type 3R, UL50 type 3R, CSA enclosure 3, IEC529, IP32. The standard color is red enamel.
|SKU||Color||Door Hinge||Door Lock||Text|
|GB90H00-EY||Black||Standard||Plastic Push Latch||EMERGENCY|
|GB90H00-K-EY||Black||Standard||Plastic Push Latch with Keys||EMERGENCY|
|GB90H00-K||Black||Standard||Plastic Push Latch with Keys||TELEPHONE|
|GB90H00-W-EY||Black||Standard||Metal Push Latch with Keys||EMERGENCY|
|GB90H00-W||Black||Standard||Metal Push Latch with Keys||TELEPHONE|
|GB90H00-P-EY||Black||Spring Loaded||Plastic Push Latch||EMERGENCY|
|GB90H00-P||Black||Spring Loaded||Plastic Push Latch||TELEPHONE|
|GB90H00-P-K-EY||Black||Spring Loaded||Plastic Push Latch with Keys||EMERGENCY|
|GB90H00-P-K||Black||Spring Loaded||Plastic Push Latch with Keys||TELEPHONE|
|GB90H00-P-W-EY||Black||Spring Loaded||Metal Push Latch with Keys||EMERGENCY|
|GB90H00-P-W||Black||Spring Loaded||Metal Push Latch with Keys||TELEPHONE|
|GB90H02-K-EY||Red||Standard||Plastic Push Latch with Keys||EMERGENCY|
|GB90H02-K||Red||Standard||Plastic Push Latch with Keys||TELEPHONE|
|GB90H02-W-EY||Red||Standard||Metal Push Latch with Keys||EMERGENCY|
|GB90H02-W||Red||Standard||Metal Push Latch with Keys||TELEPHONE|
|GB90H02-P-EY||Red||Spring Loaded||Plastic Push Latch||EMERGENCY|
|GB90H02-P||Red||Spring Loaded||Plastic Push Latch||TELEPHONE|
|GB90H02-P-K-EY||Red||Spring Loaded||Plastic Push Latch with Keys||EMERGENCY|
|GB90H02-P-K||Red||Spring Loaded||Plastic Push Latch with Keys||TELEPHONE|
|GB90H02-P-W-EY||Red||Spring Loaded||Metal Push Latch with Keys||EMERGENCY|
|GB90H02-P-W||Red||Spring Loaded||Metal Push Latch with Keys||TELEPHONE|
|GB90H04-K-EY||Yellow||Standard||Plastic Push Latch with Keys||EMERGENCY|
|GB90H04-K||Yellow||Standard||Plastic Push Latch with Keys||TELEPHONE|
|GB90H04-W-EY||Yellow||Standard||Metal Push Latch with Keys||EMERGENCY|
|GB90H04-W||Yellow||Standard||Metal Push Latch with Keys||TELEPHONE|
|GB90H04-P-EY||Yellow||Spring Loaded||Plastic Push Latch||EMERGENCY|
|GB90H04-P||Yellow||Spring Loaded||Plastic Push Latch||TELEPHONE|
|GB90H04-P-K-EY||Yellow||Spring Loaded||Plastic Push Latch with Keys||EMERGENCY|
|GB90H04-P-K||Yellow||Spring Loaded||Plastic Push Latch with Keys||TELEPHONE|
|GB90H04-P-W-EY||Yellow||Spring Loaded||Metal Push Latch with Keys||EMERGENCY|
|GB90H04-P-W||Yellow||Spring Loaded||Metal Push Latch with Keys||TELEPHONE|
|GB90H14-EY||Grey||Standard||Plastic Push Latch||EMERGENCY|
|GB90H14-K-EY||Grey||Standard||Plastic Push Latch with Keys||EMERGENCY|
|GB90H14-K||Grey||Standard||Plastic Push Latch with Keys||TELEPHONE|
|GB90H14-W-EY||Grey||Standard||Metal Push Latch with Keys||EMERGENCY|
|GB90H14-P-EY||Grey||Spring Loaded||Plastic Push Latch||EMERGENCY|
|GB90H14-P||Grey||Spring Loaded||Plastic Push Latch||TELEPHONE|
|GB90H14-P-K-EY||Grey||Spring Loaded||Plastic Push Latch with Keys||EMERGENCY|
|GB90H14-P-K||Grey||Spring Loaded||Plastic Push Latch with Keys||TELEPHONE|
|GB90H14-P-W-EY||Grey||Spring Loaded||Metal Push Latch with Keys||EMERGENCY|
|GB90H14-P-W||Grey||Spring Loaded||Metal Push Latch with Keys||TELEPHONE|
|GB90H-14-SP-LL||Grey||Spring Loaded||Plastic Push Latch||None|
|GB90H14-LL||Grey||Standard||Plastic Push Latch||None|
|GB90H14-LKM||Grey||Standard||Metal Push Latch with Keys||TELEPHONE|
|GB90H00||Black||Standard||Plastic Push Latch||TELEPHONE|
|GB90H02-EY||Red||Standard||Plastic Push Latch||EMERGENCY|
|GB90H02||Red||Standard||Plastic Push Latch||TELEPHONE|
|GB90H04-EY||Yellow||Standard||Plastic Push Latch||EMERGENCY|
|GB90H04||Yellow||Standard||Plastic Push Latch||TELEPHONE|
|GB90H14||Grey||Standard||Plastic Push Latch||TELEPHONE|
|GB90H02P-LL||Red||Spring Loaded||Plastic Push Latch||None|
Model # 255-003 GAI-Tronics Weatherproof Telephone Enclosure 255-003 Series$337.60

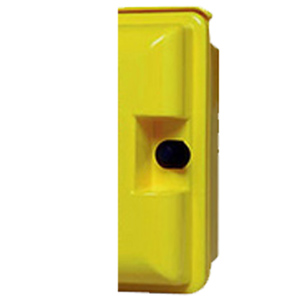

Model # 3460 Allen Tel Replacement Push Latch for the GB90H$26.46
