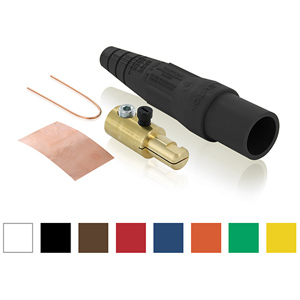

Leviton Rhino-Hide Cam Type Female Plug
(Model # 16D32-U)
Product Brochure (pdf)
Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.
16 series taper nose female detachable plug with single set screw. Primary applications include concerts, sound stages, movie making, television production, sporting events and conventions.
Rhino-Hide Single Pole Cam-Type Connectors are designed for easy assembly and disassembly without special tools.
Electrical Specifications:
- Max Amperage: 400 Amp
- Max Voltage: 600 Volt
Material Specifications:
- Sleeve Material: Santroprene TPV
- Contact Material: Brass
- Strain Relief: Copper Wire
Mechanical Specifications:
- Gender: Female
- Connection Type: Double Set Screw
- Cable Range: 2-4/0 AWG
Standards and Certifications:
- NEMA Rating: Type 3R
- UL:1691
- Country Of Origin: Mexico
| SKU | Color |
|---|---|
| 16D32-UE | Black |
| 16D32-UW | White |
| 16D32-UR | Red |
| 16D32-UB | Blue |
| 16D32-UG | Green |
| 16D32-UY | Yellow |
| 16D32-UO | Orange |
| 16D32-UH | Brown |
