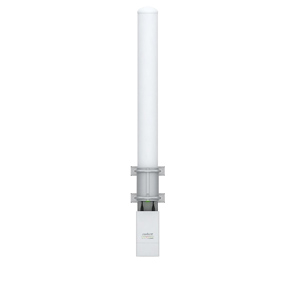

Ubiquiti Next-Gen 2x2 Dual Polarity MIMO Omni Antenna
(Model # AMO-5G10)
Product Brochure (pdf)
Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.
airMAX Omni is a Carrier Class 2x2 Dual Polarity MIMO Omnidirectional Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).
AMO-5G13 Features:
- Frequency Range - 5.45 - 5.85 GHz
- Gain - 10 dBi
- Elevation Beamwidth - 12°
- Max VSWR - 1.6:1
- Downtilt - 4°
- Wind Survivability - 125 mph
- Wind Loading - 10 lb @ 100 mph
- Polarization - Dual-Linear
- Cross-pol Isolation - 25 dB min
- ETSI Specification - EN 302 326 DN2
- Mounting - Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
| SKU | Quantity |
|---|---|
| AMO-5G10 | Single |
