Hubbell Hi-Impact 5 Channel TrukTrak 45° Right Turn Module

(Model # HBLTT545RB)
Hubbell Hi-Impact 5 Channel TrukTrak 45 Right Turn Module
Hubbell

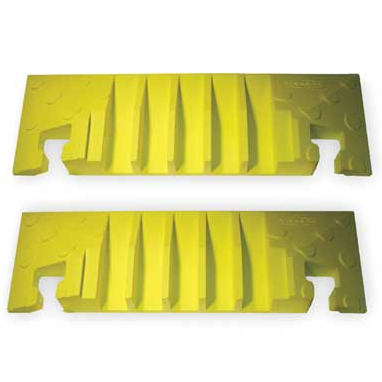

Image Shown is 3' Track Section

Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.

  • $235.85

  • Availability:
  • Usually ships in 10 days
  • Returnable
  • Shipping Costs
  • Additional shipping charges may apply. You will be contacted if necessary.
Qty:
Hi-Impact TrukTrak 5 Channel Modular Cable Protection System 45 Right Turn Module offers heavy duty non-metallic cable protection designed to safeguard electrical cables and cords from vehicle and pedestrian traffic. It is ideal for the industrial environment where it is necessary to support heavy trucks and fork lifts.
45 Right Turn Module Features:
  • 5 Channels for protection of cables bundle diameters up to 1.25" in diameter
  • Safety Blue and Yellow Color provides high visibility
  • Supports both power and communications
  • High Density Polyurethane Construction supports heavy loads and is weather resistant
  • Modular interlocking design provides easy installation, breakdown, and storage
  • Safety surface pattern reduces risk of slipping and skidding
  • Compliant with NEC requirements for insulating electrical cables and cord at carnivals, amusement parks, convention centers, and similar public areas
  • Operating temperature range: TIA/EIA-568-B -25C to 70C
  • Hinge Material: Reinforced fiberglass
  • Length (A): 25"
  • Width (B): 20"
  • Height (C): 2.31"
  • Cable Channel Width (D): 1.25"
  • Cable Channel Height (E): 1.25"
  • Maximum Load at 21 Degree C is 20,150 lbs.
  • Maximum Load at 48 Degree C is 9,200 lbs.
Returns:
  • Due to the specialized nature of this product and manufacturer requirements, this product is not returnable.
SKU Returnable
HBLTT545RB No
