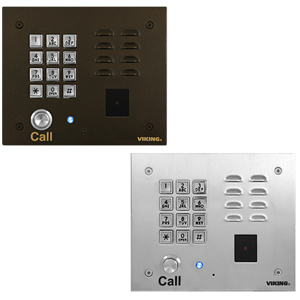

Viking VoIP Stainless Steel Vandal Resistant Entry Phone with Keypad and Proximity Reader

(Model # K-1770-IP)
Viking VoIP Stainless Steel Vandal Resistant Entry Phone with Keypad and Proximity Reader
Viking

Note: Picture may not represent the actual product. We are continuously working on improving our website and reserve the right to change specifications, availability, and pricing without prior notice.

  • $926.60

  • Availability:
  • Usually ships in 4 weeks
  • Finishes
  • Weather Protection
Qty:
The K-1770-IP VoIP entry phones provide a tough and attractive handsfree phone for apartment, and residential door entry or applications requiring a vandal resistant VoIP speakerphone with a built-in 125kHz proximity card reader..

K-1770-3 Features:
  • Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read confirmation
  • Frequency: 125KHz
  • Format: 26 bit Wiegand
  • Read Range: 1.25” to 2.0”
  • Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB and certain legacy HID® proximity protocols* (* HID and the HID logo are registered trademarks of HID Global
  • Corporation, an ASSA ABLOY company. All other trademarks are the property of their respective owners.)
  • Transducer: Beeps during card read
  • LED: Red, turns off during card read
  • Operating Temperature: -34° C to 65° C (-30° F to 150° F)
  • Blue “in use” LED
  • Telephone line powered
  • Volume adjustments for microphone and speaker
  • Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
  • Selectable auto-answer feature for monitoring
  • Selectable push button disconnect
  • Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
  • Optional VE-6x7 Surface Mount Box available
  • Selectable VOX switching speed
SKU Finishes Weather Protection
K-1770-IP Stainless Steel Standard
K-1770-IP-EWP Stainless Steel Enhanced
K-1770-BN-IPEWP Oil Rubbed Bronze Enhanced
K-1770-BN-IP Stainless Steel Standard
