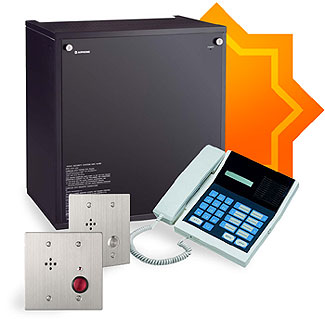

The AI-900 provides a complete communication network throughout a facility or campus, and can be easily integrated with access control and video surveillance systems. In today's world of heightened security, and with a variety of application needs, a system needs to be flexible and versatile. Simple programming of the Al-900 allows each system to be custom-configured to meet the specific needs of almost any commercial or institutional application. Whether the person on duty is in a security office or is making rounds, a call from a remote area never has to go unanswered. The Al-900 is a sophisticated yet simple system that meets the demands of today's corporate and institutional facilities.

Al-900 Total Solution System Applications:

Aiphone's AI-900 Integrated Security Intercommunication System is a voice communication system that allows calls to be made quickly and easily—even in emergency situations—with the touch of a button. The Al-900 system's ability to integrate with other systems makes it ideal for security applications.

School / Institutional Door entry and perimeter control Classroom-to-office communication Staff-to-staff communication Elevator communication Zone paging Office / Building Communications Door entry and perimeter control CCTV control Scan monitoring of secure areas Elevator communications Areas of rescue assistance Office-to-office communications Zone paging

Parking Emergency calling Scan monitoring Areas of evacuation or rescue Perimeter access control CCTV control Correctional Perimeter and door access control CCTV control Staff-to-inmate communication Scan monitoring of secure areas Zone paging

Features

• Station Capacity

  Single Exchange:
  4 Master Stations
  64 Substations

• Up to 16 Exchanges:

  64 Master Stations
  1024 Substations

• System Integration

  Remote control and monitoring via RS-232 communication protocol

• Remote System Management

  PC programming and monitoring software Program and maintain multiple exchanges off-site from PC

• Audio Recording

  Recording capability from the master or telephone through the audio recording output

• Data Logging

  The operating log of all control functions can be stored on PC for future reference

• Master Station

  Flexibility Aiphone master station with alphanumeric display and clock line communication

• Paging Interface

  For external amplifier zone distribution with 16 control ports

• External Audio

  Input For station and external amplifier zone distribution with four trigger inputs

Functions

• Telephone

  Direct-in dial
  Outside line access
  Manual forwarding
  Off-site forwarding
• Call Forwarding Manual Remote (Call Capture)

  Time-based
  No answer
  Busy
  Off-site telephone
• Paging

  Zone (19)
  All-zone paging
  Public Address (16)
• Scan Monitor
• Master Station Grouping (16)
• Emergency Conference
• Auto-Dial and Redial
• Call Transfer/Hold
• Priority (Emergency/Normal)
• Automatic Time-out
• Call Queuing
• Selective Response

System Components

Image Model No. Name AI-900MF Main Frame AI-RS160 Flush Mount Indoor Vandal-Resistant Sub AI-RS180 Flush Mount Outdoor Emergency Sub Station AI-900AF Audio Function Card AI-900CO Telephone Line Interface Card AI-900RS Sub Station Interface Card AI-900DI Direct Select Master Station Interface Card AI-PU200 Power Transformer Unit AI-HS100 Handset Sub Station AI-PN100B Rack Mount Panel

Image Model No. Name AI-MS900 Master Station with LCD Display AI-RS170 Flush Mount Outdoor Vandal-Resistant Sub AI-NVP-RA Vandal Proof Sub Station for AI-900 System AI-900AL Telephone Master Station Card AI-900MS Master Station Interface Card AI-900TI Main Frame Interface Card AI-910DI Direct Select Input/Output Relay Board Card AI-CP170 Speaker/Call Button Interface Board AI-YC303 Main Frame Mounting Bracket T3115BGM(15W) T3130BGM(30W) DMA2060(60W) DMA2120(120W) Paging Amplifiers
