AX SERIES gives you the power to:
-
Control entry security and regulate access into a building
Communicate easily and efficiently while keeping your facility secure
Confirm identity with crisp audio and clear, up-close video
When the need is for basic and affordable security communication, the AX Series is ideal. Its easy installation and user-friendly programming will not only save on time, but cost as well. A wide variety of door and sub stations, combined with sleek and sturdy master stations, will provide a system that is versatile, comprehensible, and simple to use.
Features and functions are programmed using the custom software, included with the CEU. It is intuitive to use and allows you to set individual door stations’ call-in length (10 seconds to 10 minutes, or infinite), call-in priority levels, scan monitoring inclusion, and door release relay activation and timing. In addition, the software features an easy to use interface for gathering log data, setting the communication method at the master (VOX or PTT), and data up/down loading.
Utilizing the serial interface and custom software, the AX Series is capable of total integration. This allows interaction with electronic access control devices, CCTV cameras, DVRs, event logging, and site management systems. Door stations with embedded HID® readers are available for keyless entry with access control hardware, eliminating the need for separate card readers.
Specifications
Features | Description |
---|---|
Power Source | 24V DC - Use two PS-2420UL (110V AC) per system |
Door Station Calling | Tremolo call tone programmable from 10-600 seconds, or infinite. LCD monitor remains on for duration of call tone up to 10 minutes max. |
Master Station Calling | Select station to call, pretone sounds, then speak hands-free or push-to-talk |
Video Monitor | 3.5” direct view TFT color LCD |
Door Release | N/O or N/C, programmable per station 24V AC/DC (500mA max.) |
Wiring | CAT-5e UTP-4 homerun from each station to CEU |
Distance | Door station to CEU: 980’ Master station to CEU: 980’ |
CO Tel Adaptor | Viking Model K-1900-5 Programmable Dialer |
System Components
Image | Model No. | Name |
---|---|---|
![]() | AX-248C | AX Series Exchange Unit |
![]() | AX-084C | Standard Central Exchange Unit |

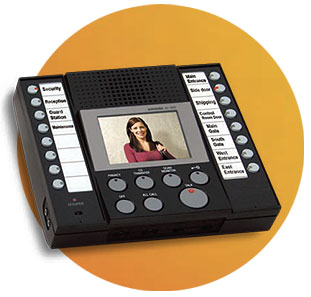

![]() | AX-8MV | Audio Video Master Station (black or white) |
![]() | AX-8M | Audio Only Master Station - Black Only |
![]() | AX-16SW | Add-on Selector for AX Masters |
![]() | AX-DV | Video Door Station, Surface Mount |
![]() | AX-DV-P | Video Door Station with HID Reader, Surface Mount |
![]() | AX-DV-XP | Video Door Station with Stand Alone Prox Reader, Surface Mount |
![]() | AX-DVF | Video Door Station, Flush Mount |
![]() | AX-DVF-P | Video Door Station with HID Reader, Flush Mount |
![]() | AX-DVF-XP | Video Door Station with Stand Alone Prox Reader, Flush Mount |
![]() | AX-DM | Audio Only Door Station |
![]() | AX-A | Audio Only Sub Station Wall or Desk Mounted |
![]() | AX-AN | Audio Only Sub Station with Privacy Button |
![]() | AX-B | Audio Only Sub Station Semi-Flush Mounted |
![]() | AX-BN | Audio Only Sub Station with Privacy Button |
![]() | AXW-AZ | CCTV Input Module |
![]() | HID-SS | HID Reader in Stainless Frame |
![]() | IE-DC | Door Station |
![]() | IE-JA | 2-Gang Flush Mount Door Station |
![]() | IE-SS | Vandal Resistant Sub Station |
![]() | IE-SSR | Vandal Resistant Sub Station with Red Button |
![]() | IF-DA | Audio Door Station |
![]() | PS-2420UL | 24V DC, 2A Power Supply |
![]() | EL-12S | Electric Door Strike |
![]() | AXW-AVT | AX Series Audio-Video Adaptor |
![]() | MCW-S/A | Desk Mount Stand |
![]() | RY-24L | Form C Door Release Relay, 24V DC Input |
![]() | SBX-LSE | 18 Gauge Stainless Steel Lockable Enclosure Box |
