CADDY Low Voltage/Datacomm Fastening Support Systems

Code compliant fasteners and structural fixing systems require a high degree of reliability, and any compromise on quality cannot be accepted. Every detail of an Erico CADDY fastener component, from initial conception through design and manufacture, is aimed towards providing cost effective solutions.

CADDY Fasteners offer:

Time and money savings

Simple and easy installation...

A hammer, pliers and screwdriver can be the only requirements. For certain applications manual installation is possible.

A complete range of products...

More than 5000 types of CADDY products, often offering several options for any one given application

Quality Control...

CADDY Fasteners, manufactured by ERICO, are produced from spring steel, galvanized steel, plastic, as well as other materials. Erico is know in the industry as a leader in the design and production of spring steel fasteners.

Load Rating...

CADDY Fasteners are designed with two load limits:

Static load limit is a rated stationary load limit for a fastener. ERICO standards require that test samples withstand a load equal to 3x this rating.
The ultimate static load limit is a rated stationary load limit which, if exceeded, may cause failure of the fastener. ERICO standards require that test samples withstand this rating. Some CADDY fasteners also are designed with an undefined rating and are to be used for positioning only with no loading on them.

Static load limit and ultimate static load limit values specify maximum allowable installed loads for user applications. These values are for loads applied VERTICALLY to the normal fastener installation except as may be diagrammed otherwise. Where the load rating of the CADDY fastener exceeds that of the structural member, the lowest rated item must set the load limit.

NOTE: CADDY fasteners are intended for support of electrical components at stationary loads. Not to be used for dynamic loads such as fluid and gas distribution components, etc.

Important...

CADDY fasteners used with wire, rod or threaded rod are designed for use with coarse round wire, hot rolled carbon steel bar, cold rolled carbon steel bar and threaded rod all meeting AISI specifications for tolerances.

Stud Wall

Mounting Plate Brackets (Non-Metallic)

Features:

No sharp metal edges with new plastic design

Fastest, easiest way to install

No installation tools required to secure bracket in the drywall opening

Serrated interlocking system secures tight

Template points on brackets eliminate multiple measurement markings during installation

Recessed design assures flush mount of device

Only CADDY provides the industry with the widest application range 1/4" to 1-1/4"

Available in single gang, double gang and a unique 3-4 gang size

Eliminates the need for electrical boxes on low voltage class 2 applications

NOTE: For low voltage Class 2 use only


Catalog Number	Description	QTY Per Box
MP1P	Single gang mounting plate	100
MPAL2	Double gang mounting plate	100
MP34P	3 or 4 gang mounting plate	20

Mounting Plate Brackets (Metallic)

Features:

Provides positive support with locking screws (included)

Mounts any standard low voltage device in 1/2" through 1-1/4" walls

Makes wire "fishing" easier

Install with a drywall saw and screwdriver

Eliminates the need for an electrical box when installing low voltage Class 2 wiring

NOTE: For low voltage Class 2 use only


Catalog Number	Description	QTY Per Box
MPLS	Single gang screws to drywall (screws included)	100
MPLS2	Double gang screws to drywal (screw included)	100

Low Voltage Mounting Brackets - For New Construction

Features:

Provides a bracket for mounting low voltage Class 2 communication outlets

Side support provides for a rigid installation

May be installed to the front or the side of the metal or wood stud

Eliminates bulges in the dry wall caused by plaster rings

Attaches with sel-tapping screws or nails

Works with 1/2" and 3/8" dry wall

Compliant with TIA/EIA-569-A (2/98) and TIA/EIA-570-A (10/99) standard


Catalog Number	Description	QTY Per Box
MP1S	Plate mounting bracket for new work	25
MP2S	Double gang plate mounting bracket for new work	25

Box Mounting Brackets - For Between Studs

Features:

Supports electrical boxes, plaster rings or low voltage devices from one bracket

Accommodates up to four 4" or 4-11/16" boxes

Mounts 1-1/2" or 2-1/8" deep boxes

Eliminates the need for an electrical box on low voltage applications

Compliant with TIA/EIA-569-A (2/98) and TIA/EIA-570-A (10/99) standards


Catalog Number	Description	QTY Per Box
RBS16	Mounts up to three 4" or 4-11/16" boxes/plaster rings 16" bracket	25
RBS24	Mounts up to four 4" or 4-11/16" boxes/plaster rings 24" bracket	25

Cabble Grippers

Features:

Installs easily to metal and wood studs

Provides secure installation of multiple cables with unique locking/unlocking system

Staples, nails or screws in metal studs without tools

Supports four NMC or eight 4 pair UTP cable (electrical and datacomm cannot be combined)

Delivers compliance with: NEC 300-4(d), CEC 12-510 and 12-516

Ordering Information
	Catalog Number	Description	QTY Per Box
	CG4	Cable gripper cable support	100

Metal Stud Punch and Easy Snap Grommet

Grommet Features:

Snap one grommet into standard 1-11/32" field punched hole, OR snap two together into any shape factory punched hole

Provides full 360 degree protection for cable and makes cable pull easier

Delivers compliance with: NEC Article 300-4(b)(1) and CEC Rule 12-516

Punch Features:

New cushioned handles mean less operator fatigue and more comfortable handling

New tool design with offset handles allows punch to work in confined locations and near perpendicular walls

Lightweight punch makes accurate location of holes easier

Hardened steel components keep tool sharper longer - less replacement

Punches up to 20 gauge sheet metal

Plastic grommets snap easily into 1-11/32" hole


Catalog Number	Desription	QTY Per Box
MSP20	Metal stud punch	1
ESG1	Easy snap grommet	100/1000

Press-On Protection Plate - For Wood and Metal Studs

Features:

Fastest nail plate protection; no tools required

Protects electrical, Datacomm and plumbing

Works on wood or metal studs

16 GA. steel to meet NEC 300-4(b)(2)

Breakable tabs permit multiple plates to be ganged together

Corrosion resistant zinc phosphate coating

Ordering Information
	Catalog Number	Description	Material	TQY Per Box
	304B2	Press-on protection plate	16 GA. steel with zinc phosphate	100

Beam

Hammer-On Flange Clip

Features:

Locates a "portable" 1/4" hole with just a hammer

Installs easily regardless of insulation materials on beam flange

Fits most beams and bulb tees


Catalog Number	Flange Thickness	QTY Per Box	Static Load Limit
2H4	3/32" - 9/64"	100	160 lbs.
4H24	1/8" - 1/4"	100	200 lbs.
4H58	5/16" - 1/2"	100	200 lbs.
4H912	9/16" - 3/4"	100	200 lbs.

Multi-Purpose Clip

Features:

Supports drive rings or bridle rings from flange

Accommodates any beam flange from 1/8" to 1/2" thickness

Accommodates standard 1/4"-20 or #10-24 threaded bridle rings, standard drive rings as well as unthreaded bridle rings

Requires only hammer to install

Ordering Information
	Catalog Number	Description
	2FMP28	Multi-purpose clip for drive rings and bridle rings

Hammer-On Flange Clip

Features:

When used with CADDY combination conduit hanger, the conduit run lines up with "knock-outs" in outlet box and eliminates offsets and bends

Provides with a 1/4" - 20 thread impression so that the box may be quickly and securely attached to the clamp

Also available with a staked stud, 1/4" - 20 x 3/8" to provide easier attachment of outlet boxes to beams. Eliminates having to use loose screws

The CADDY combination washer-wing nut (Cat. No. 4WN) can be used to attach box (Not included)


Catalog Number	Flange Thickness	QTY Per Box
M24	1/8" - 1/4"	100
M58	5/16" - 1/2"	100
M912	9/16" - 3/4"	100
M24S	1/8"-1/4"	100
M58S	5/16"- 1/2"	100
M912S	9/16" - 3/4"	100

Flange Mount Conduit Clip - Snap Close

Features:

Available with CADDY CONDUIT CLIP bottom mounted or side mounted

Available for 3/8" through 2" EMT, rigid and aluminum conduit

Requires only hammer and pliers to install

Will pivot through 360 degrees

Ordering Information
		Description	QTY Per Box
6M24	6M24SM	3/8" MC/AC cable to 1/8" to 1/4" flanges	100
6M58	6M58SM	3/8" MC/AC cable to 5/16" to 1/2" flanges	100
6M912	6M912SM	3/8" MC/AC cable to 9/16" to 3/4" flanges	100
812M24	812M24SM	1/2" to 3/4" conduit to 1/8" to 1/4" flanges	100
812M58	812M58SM	1/2" to 3/4" conduit to 5/16" to 1/2" flanges	100
812M912	812M912SM	1/2" to 3/4" conduit to 9/16" to 3/4" flanges	100
16M24	16M24SM	1" conduit to 1/8" to 1/4" flanges	100
16M58	16M58SM	1" conduit to 5/16" to 1/2" flanges	100
16M912	16M912SM	1" conduit to 9/16" to 3/4" flanges	100
20M24	20M24SM	1-1/4" conduit to 1/8" to 1/4" flanges	100
20M58	20M58SM	1-1/4" conduit to 5/16" to 1/2" flanges	100
20M912	20M912SM	1-1/4" conduit to 9/16" to 3/4" flanges	50
24M24	24M24SM	1-1/2" conduit to 1/8" to 1/4" flanges	50
24M58	24M58SM	1-1/2" conduit to 5/16" to 1/2" flanges	50
24M912	24M912SM	1-1/2" conduit to 9/16" to 3/4" flanges	50
32M24	32M24SM	2" conduit to 1/8" to 1/4" flanges	50
32M58	32M58SM	2" conduit to 5/16" to 1/2" flanges	50
32M912	32M912SM	2" conduit to 9/16" to 3/4" flanges	50

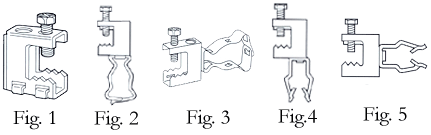

Beam Clamps

Features:

Easy installation to beam flangs up to 1/2"

Supports 1/4" and 3/8" threaded rod, S-hooks, electrical boxes, conduit, J-hooks and bridle rings

Accommodates standard 1/4"-20 or #10-24 threaded bridle rings

NOTE: When using rigid conduit on P series, use next size larger clip (1/2" rigid use 12P)

Ordering Information
Catalog Number	Fig No.	Description	Static Load Limit	QTY Per Box
BC	1	Beam clamp thru 1/2" flange	100 lbs.	100
BC812M	2	1/2" to 3/4" conduit to beam thru 1/2" flange	100 lbs.	100
BC16M	2	1" conduit to beam thru 1/2" flange	100 lbs.	100
BC20M	2	1-1/4" conduit to beam thru 1/2" flange	100 lbs.	100
BC24M	2	1-1/2" conduit to beam thru 1/2" flange	100 lbs.	50
BC32M	2	2" conduit to beam thru 1/2" flange	100 lbs.	50
BC812MSM	3	1/2" to 3/4" conduit to beam thru 1/2" flange	25 lbs.	100
BC16MSM	3	1" conduit to beam thru 1/2" flange	25 lbs.	100
BC20MSM	3	1-1/4" conduit to beam thru 1/2" flange	25 lbs.	100
BC24MSM	3	1-1/2" conduit to beam thru 1/2" flange	25 lbs.	50
BC32MSM	3	2" conduit to beam thru 1/2" flange	25 lbs.	50
BC8P	4	1/2" conduit to beam thru 1/2" flange	25 lbs.	100
BC12P	4	3/4" conduit to beam thru 1/2"	25 lbs.	100
BC16P	4	1" conduit to beam thru 1/2" flange	25 lbs.	100
BC8PSM	5	1/2" conduit to beam thru 1/2" flange	15 lbs.	100
BC12PSM	5	3/4" conduit to beam thru 1/2"	15 lbs.	100
BC16PSM	5	1" conduit to beam thru 1/2" flange	15 lbs.	100

More Beam Clamps

Features:

Easy installation for beam flanges 1/8" to 5/8"

Supports 1/4" threaded rod, 1/4" threaded bridle rings and boxes

Available riveted to conduit clips 1/2" through 2"

Bright zinc finish

NOTE: See components section for threaded bridle rings


Catalog Number	Rigid	EMT	QTY Per Box
BC200	-	-	50
BC200-CD0B	1/2"	1/2"	50
BC200-CD1B	3/4"	3/4"	50
BC200-CD2B	1"	1"	50
BC200-CD2.5B	-	1-1/4"	50
BC200-CD3B	1-1/4"	1-1/2"	50
BC200-CD4B	1-1/2"	-	25
BC200-CD5B	2"	2"	25

Big Beam Clamps - Ideal for Electrical, Mechanical and HVAC Applications

Features:

Threaded holes accommodate 3/8" threaded rod or 3/8" bolt

Attaches to beam flange up to 3/4"

Ideal for creating a threaded rod trapeze

Bright zinc finish

Ordering Information
	Catalog Number	Description	QTY Per Box
	BC400	For 3/8" threaded rod or 3/8" - 16 bolts to beam flange through 3/4"	25

Reversible Beam Clamp with Side Mounting Threads

Features:

Easy installation to steel members up to 3/4" (20mm) thick

Reversible to allow installation to both top and bottom flange

Hardened cup point setscrew to provide secure grip on tapered sections

Threaded to quickly accommodate attachment of 1/4" dia. threaded rod, bridle rings and boxes from three positions - top, bottom and back

Heavy duty malleable iron construction with electrogalvanized finish for added corrosion protection

Ordering Information
	Catalog Number	Rod Size	Bolt Size	Flange Size Max	Coating	Qty Per Box	Top Load Limit	Bottom Load Limit
	BC260025EG	1/4"-20	1/4"-20	3/4"	EG	100	250	100

Cable Snap Clip

Features:

Supports cable from 1/16" - 1/2" flange

Works effectively with MC and AC cable dimensions 3/8" - 11/4" an low voltage cables from 7/32" and up

Clip "snaps" on flange and cable "snaps" into clip

Ordering Information
	Cable O.D.	Description	QTY Per Box
SC2A	.218-.281	Low voltage, data and MC/AC cable to 1/16" thru 3/16" flange thickness	100
SC2B	.312-.375	Low voltage, data and MC/AC cable to 1/16" thru 3/16" flange thickness	100
SC2C	.375-.437	Low voltage, data and MC/AC cable to 1/16" thru 3/16" flange thickness	100
SC2D	.468-.562	Low voltage, data and MC/AC cable to 1/16" thru 3/16" flange thickness	100
SC2E	.500-.718	Low voltage, data and MC/AC cable to 1/16" thru 3/16" flange thickness	100
SC2F	.750-.937	Low voltage, data and MC/AC cable to 1/16" thru 3/16" flange thickness	100
SC2G	.968-1.250	Low voltage, data and MC/AC cable to 1/16" thru 3/16" flange thickness	100
SC4A	.218-.281	Low voltage, data and MC/AC cable to 3/16" thru 9/32" flange thickness	100
SC4B	.312-.375	Low voltage, data and MC/AC cable to 3/16" thru 9/32" flange thickness	100
SC4C	.375-.437	Low voltage, data and MC/AC cable to 3/16" thru 9/32" flange thickness	100
SC4D	.468-.562	Low voltage, data and MC/AC cable to 3/16" thru 9/32" flange thickness	100
SC4E	.500-.718	Low voltage, data and MC/AC cable to 3/16" thru 9/32" flange thickness	100
SC4F	.750-.937	Low voltage, data and MC/AC cable to 3/16" thru 9/32" flange thickness	100
SC4G	.968-1.250	Low voltage, data and MC/AC cable to 3/16" thru 9/32" flange thickness	100
SC8A	.218-.281	Low voltage, data and MC/AC cable to 5/16" thru 1/2" flange thickness	100
SC8B	.312-.375	Low voltage, data and MC/AC cable to 5/16" thru 1/2" flange thickness	100
SC8C	.375-.437	Low voltage, data and MC/AC cable to 5/16" thru 1/2" flange thickness	100
SC8D	.468-.562	Low voltage, data and MC/AC cable to 5/16" thru 1/2" flange thickness	100
SC8E	.500-.718	Low voltage, data and MC/AC cable to 5/16" thru 1/2" flange thickness	100
SC8F	.750-.937	Low voltage, data and MC/AC cable to 5/16" thru 1/2" flange thickness	100
SC8G	.968-1.250	Low voltage, data and MC/AC cable to 5/16" thru 1/2" flange thickness	100

Rod/Wire Hanger

Hammer-On Plain and Threaded Rod Hangers - Beam Clamps

Features:

Used to suspend #8 wire, 1/4". 3/8" plain rod or 1/4" or 3/8" threaded rod from beam flanges 1/8" to 3/4" thick

Requires only a hammer to install

Ordering Information
Catalog Number	Fig No.	Flange Thickness	Rod Size	QTY Per Box
70824	1	1/8" - 1/4"	#8 wire or 1/4" plain rod	100
70858	1	5/16" - 1/2"	#8 wire or 1/4" plain rod	100
708912	1	9/16" - 3/4"	#8 wire or 1/4" plain rod	100
6A24	2	1/8" - 1/4"	3/8" (plain)	100
6A58	2	5/16" - 1/2"	3/8" (plain)	100
6A912	2	9/16" - 3/4"	3/8" (plain)	100
4TI24	3	1/8" - 1/4"	1/4" threaded	100
4TI58	3	5/16" - 1/2"	1/4" threaded	100
4TI912	3	9/16" - 3/4"	1/4" threaded	100
4TI24	3	1/8" - 1/4"	3/8" threaded	100
4TI58	3	5/16" - 1/2"	3/8" threaded	100
4TI912	3	9/16" - 3/4"	3/8" threaded	100
6TA24	4	1/8" - 1/4"	1/4" or 3/8" threaded (nuts required)	100
6TA58	4	5/16" - 1/2"	1/4" or 3/8" threaded (nuts required)	100
6TA912	4	9/16" - 3/4"	1/4" or 3/8" threaded (nuts required)	100

Rod and Wire Hangers

Features:

ANGLE BRACKET suspends plain rod, threaded rod or wire drops from laminated wood or concrete beams, joists, ceilings and walls

OFFSET BRACKET suspends plain rod, threaded rod or wire drops from laminated wood or concrete beams, joists, ceilings and walls

NOTE: Loads indicated are for CADDY fasteners only. Method of attachment to structure must be evaluated separately

Ordering Information

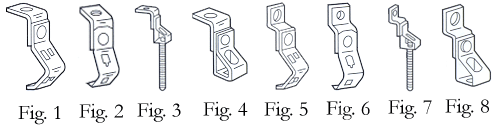

Angle Bracket Cat. No.	Fig. No.	QTY Per Box	Description	Offset Bracket Cat. No.	Fig. No.	QTY Per Box
708AB	1	100	For #8 wire or 1/4" plain rod	708AO	5	100
6AB	2	100	For 3/8" plain rod	6AO	6	100
4TIB	3	100	For 1/4" threaded rod, with thread impression	4TIO	7	100
6TIB	3	100	For 3/8" threaded rod, with thread impression	6TIO	7	100
6TB	4	100	For 1/4" or 3/8" threaded rod, nuts required	6TO	8	100

Pin Driven Angle Brackets

Features:

Longer leg angle bracket for tool clearance

Designed to fit a variety of pin drivers

Improved for easier installation with pin drivers

Star hole provides more gripping power to align brackets

Pregalvanized steel

Preassembly options available for Rod, Wire, Strap and Cable Applications

NOTE: Load limits apply to CADDY fasteners only. Pin must be evaluated separately


Catalog Number	Description	Load	QTY Per Box
CAT21AFAB3	Cable support hanger with angle bracket - 1-5/16" diameter loop	50	50
CAT32AFAB	Cable support hanger with angle bracket - 2" diameter loop	50	50
CAT12AFAB3	Cable support hanger with angle bracket, holds up to 16 cables of 4 twisted pair or fiber optic	50	50
6AFAB3	For 3/8" plain rod	160	100

Purlin

"C" and "Z" Purlin Clips

Features:

One fastener fits flanges 1/16" to 1/4"

Supports ire or rod from bar joist, C Purlin (VF14) or Z Purlin (AF14)

Installs from floor with VAFT tool and conduit

NOTE: VF for vertical flange only and AF for anlge flange only

Ordering Information
	Catalog Number	Description	QTY Per Box
	VF14	1/16" to 1/4" vertical flange for wrap wire, "S" hooks, bolting straps, WMX6	100
	VF14708	1/16" to 1/4" to #8 wire or 1/4" plain rod	100
	VF146A	1/16" to 1/4" to 3/8" plain rod	100
	VF144TI	1/16" to 1/4" to 1/4" threaded rod	100
	VF146TI	1/16" to 1/4" to 3/8" threaded rod	100
	VF146T	1/16" to 1/4" to 3/8" threaded rod (nuts required)	100
	AF14	1/16" to 1/4" Z Purlin for wrap wire, "S" hooks, bolting straps, WMX6	100
	AF14708	1/16" to 1/4" to #8 wire or 1/4" plain rod	100
	AF146A	1/16" to 1/4" to 3/8" plain rod	100
	AF144TI	1/16" to 1/4" to 1/4" threaded rod	100
	AF146TI	1/16" to 1/4" to 3/8" threaded rod	100
	AF146T	1/16" to 1/4" to 3/8" threaded rod (nuts required)	100
-	VAFT	Installation tool for VF & AF assemblies	1

Multi-Flange Rod Hanger

Features:

C or Z purlins pr up to 1/4" (7mm) horrizontal beam flange

Slotted, Hex, Robertson, Phillips combo head bolt

Hardened cup point setscrew for secure grip

Fast installation of threaded components; (1/4" or 3/8") No nuts required

Swivel feature option

Electrogalvanized finish for good corrosion protection

Available in hot dipped galvanized finish (special order)

NOTE: Loads up to 200 lbs. (0.90 kN) on C or Z purlins or 160 lbs. (0.71 kN) on horizontal beams


Catalog Number	Description	Thread	QTY Per Box
PH4	Rod hanger	1/4" - 20	25
PH6	Rod hanger	3/8" - 16	25
PHSW4	Rod hanger with swivel	1/4" - 20	25
PHSW6	Rod hanger with swivel	3/8" - 16	25

Drop Wire/Rod

Cable/Conduit From Drop Wire Support

Features:

Supports cable and conduit without bending drop wire

Delivers 25% faster installation

Eliminates the need to trap cable/conduit against drop wire


Catalog Number	Description	QTY Per Box
PCS1	Flexible cable support from #8-#12 drop wire for MC/AC 14-2 through 12-3 with ground up to .600 O.D.	100
PCS2	Conduit/cable support from #8-#12 drop wire for 1/2" and 3/4" EMT, MC/AC up to .900 O.D.	100

Multi-Function Clip - From Drop wire or Flange

Features:

Attaches to #12 wire thru 3/8" rod

Fits 1/8" to 3/8" flanges

Provides attachment of conduit and boxes

Supports #10-24 and 1/4" - 20 threaded bridle rings

Ordering Information
Catalog Number	Fig. No.	Description	Wire Size	Flange Size	QTY Per Box
4Z34	1	Multi-function clip	#12 wire thru 1/4" plain rod	1/8" - 3/8"	100
4Z34812M	2	Multi-plus 1/2" or 3/4" conduit	#12 wire thru 1/4" plain rod	1/8" - 3/8"	100
4Z3416M	2	Multi-plus 1" conduit	#12 wire thru 1/4" plain rod	1/8" - 3/8"	100
4Z348P	3	Multi-plus 1/2" EMT conduit	#12 wire thru 1/4" plain rod	1/8" - 3/8"	100
4Z3412P	3	Multi-plus 3/4" EMT conduit	#12 wire thru 1/4" plain rod	1/8" - 3/8"	100
4Z3416P	3	Multi-plus 1" EMT conduit	#12 wire thru 1/4" plain rod	1/8" - 3/8"	100
6Z34	1	Multi-function clip	3/8" plain or threaded rod	3/8" - 7/16"	100
6Z34812M	2	Multi-plus 1/2" or 3/4" conduit	3/8" plain or threaded rod	3/8" - 7/16"	100
6Z3416M	2	Multi-plus 1" conduit	3/8" plain or threaded rod	3/8" - 7/16"	100
6Z348P	3	Multi-plus 1/2" EMT conduit	3/8" plain or threaded rod	3/8" - 7/16"	100
6Z3412P	3	Multi-plus 3/4" EMT conduit	3/8" plain or threaded rod	3/8" - 7/16"	100
6Z3416P	3	Multi-plus 1" EMT conduit	3/8" plain or threaded rod	3/8" - 7/16"	100

Acoustical Tee

Independent Electrical Drop Wire/Rod Securing Clip

Features:

Prevents sway of dedicated electrical drop wire/rod

Doesn't negatively affect ceiling grid systems

No tools required, Forgiving desing doesn't require exact cutting of rod/wire

Painted yellow for yeasy identification by the inspector

NOTE: Consult local authority for application approval


Catalog Number	Description	QTY Per Box
EC311	Electrical drop wire securing clip #12 thru #8 wire	100
EC3114Z34	#12 wire thru 1/4" threaded rod	100
EC3116Z34	3/8" threaded rod	100

Narrow Base Cable Support

Plain, Threaded and Wood Screw Bridle Rings

Features:
When combined with other CADDY fasteners, bridle rings can be located on:

Beam flanges up to 3/4" - 2FMP28, BC, BC200, M912
Drop wire - 4Z34 - 6Z34
Concrete - 4TIB
"C" Purlins - VF144TI
"Z" Purlins - 1224TI or AF144TI
Acoustical T-Grid - ATS41 or ATA41


Catalog Number	"A" Dim.	Stock Dia.	QTY Per Box
2BR8	1/2"	#8 wire (.162)	100
2BR12	3/4"	#8 wire (.162)	100
2BR20	1-1/4"	#8 wire (.162)	100
2BR32	2"	#8 wire (.162)	100
2BRT8	1/2"	10-24 threaded	100
2BRT12	3/4"	10-24 threaded	100
2BRT20	1-1/4"	10-24 threaded	100
2BRT32	2"	10-24 threaded	100
4BRT20	1-1/4"	1/4" - 20 threaded	100
4BRT32	2"	1/4" - 20 threaded	100
4BRT64	4"	1/4" - 20 threaded	50
4BRT20WS	1-1/4"	#14 wood screw thread	100
4BRT32WS	2"	#14 wood screw thread	100

Flexible Conduit and Cable Hanger

Features:

Bundle runs of MC or AC or communications cables

Can be used with all flange clips or deck clip DH2. Also AO or AB, VF14, AF14, 122-123

Refer to local authorities and NEC Article 310 for derating ampacity when flexible power cables are used


Catalog Number	Number of Runs of MC/AC Cable That May be Supported	"A" Dim.	Ultimate Static Load Rating	QTY Per Box
WMX3	3	1-1/8"	50#	100
WMX6	6	1-3/4"	75#	100

Strut

One-Piece Strut Clamp - SCH Series

Features:

One-piece installation means no screws or bolts to drop

Installs quickly and easily. Requires only a screwdriver or nut driver for installation

Heavy-duty construction with a bright zinc finish

Size 3/8" MC/AC to 4" EMT conduits

All sizes available with load distribution plate attached to screw


Catalog Number	EMT	Rigid	Cable O.D. Range	Static Load Limit	QTY Per Box
SCH8	1/2"	-	-	200	100
SCH12	3/4"	1/2"	-	200	100
SCH16	1"	3/4"	-	v	100
SCH20	1-1/4"	1"	-	200	100
SCH6B	3/8" MC/AC	-	.10" - .63"	200	100
SCH8B	1/2"	-	.34" - .71"	200	100
SCH12B	3/4"	1/2"	.57" - .92"	200	100
SCH16B	1"	3/4"	.72" - 1.16"	200	100
SCH20B	1-1/4"	1"	1.00" - 1.51"	200	100
SCH24B	1-1/2"	1-1/4"	1.25" - 1.74"	350	50
SCH32B	2"	1-1/2"	1.74" - 2.20"	350	50
SCH40B	-	2"	2.00" - 2.38"	350	25
SCH48B	2-1/2"	2-1/2"	2.38" - 2.88"	350	25
SCH56B	3"	3"	2.72" - 3.50"	350	25
SCH64B	3-1/2"	3-1/2"	3.25" - 4.00"	350	10
SCH72B	4"	4"	3.85" - 4.50"	350	10

Break-Apart One-Piece Strut Clamp - SK Series

Features:

One-piece construction

Retained bolt and built-in nut eleminates dropping of loose parts

One size fits EMT and Rigid

Installs with screwdriver, standard wrench or nut driver

Break in half and install

Works with most struts

Bright zinc finish


Mild Steel	Stainless Steel	Aluminum	EMT Rigid	Mild & Stainless Steel Static Load	Aluminum Static Load	QTY Per Box
SK85I	SK8SS	SK8ALA	1/2"	200	150	100
SK125I	SK12SS	SK12ALA	3/4"	200	150	100
SK165I	SK16SS	SK16ALA	1"	200	150	100
SK205I	SK20SS	SK20ALA	1-1/4"	200	150	100
SK245I	SK24SS	SK24ALA	1-1/2"	200	150	50
SK325I	SK32SS	SK32ALA	2"	200	150	50
SK405I	SK40SS	SK40ALA	2-1/2"	350	200	50
SK485I	SK48SS	SK48ALA	3"	350	200	50
SK565I	SK56SS	SK56ALA	3-1/2"	350	200	25
SK645I	SK64SS	SK64SS	4"	350	200	25

MC/AC

Snap-In Support

Features:

Manufactured with stabilizer legs for "wobble-free" support

One fastener for cable size 14-4, 12-4, 12-3, 12-2, 10-3, 10-2

Snaps into place on metal stud and beam flange up to 1/8" thick, no tools required for installation

MAC2 snaps in half to accommodate a single run of cable effectively making two clips from one

Prepunched holes in clip allow it to be screwed to wood stud, concrete or block

Factory riveted assemblies are available for installation on flange, purlin, acoustical tee, drop wire, concrete, black or wood and metal stud

Delivers compliance for: NEC Article 300-4(d) allowing cable to be positioned a minimum of 1-1/4" from face of stud. CEC Rule 12-618 for support of MC/AC cable

Ordering Information

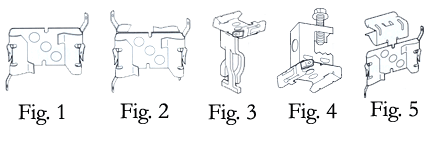

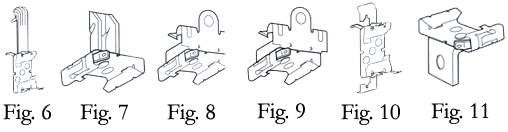

Catalog Number	Fig. No.	Description	QTY Per Box
MAC2T	2	Support 1 to 4 runs of MC/AC cable for metal stud	100
MAC2	1	Metal or wood stud and 1/8" flange	100
MAC2ATA	3	Acoustical Tee	100
MAC2BC	4	1/8" thru 1/2" flange	100
MAC224SM	5	1/8" thru 1/4" flange	100
MAC258SM	5	5/2" thru 1/2" flange	100
MAC2912SM	5	1/16" thru 3/4" flange	100
MAC2VF14	6	1/16" thru 1/4" C purlin or vertical flange	100
MAC2123	7	Z purlin	100
MAC2AO	8	offset bracket	100
MAC224	9	1/8" thru 1/4" flange - bottom mount rotates 360 degrees	100
MAC258	9	5/16" thru 1/2" flange - bottom mount rotates 360 degrees	100
MAC2912	9	1/2" thru 3/4" flange - bottom mount rotates 360 degrees	100
MAC24Z34	10	#12 thru 1/4" wire, plain or threaded rod & 1/8" thru 3/8" flange	100
MAC26Z34	10	3/8" plain of threaded rod and 3/8" thru 9/16" flange	100
MAC2FB	11	Through metal stud	100
