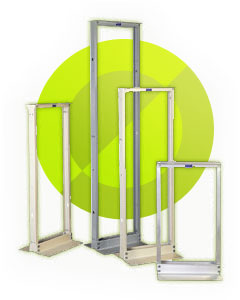

Two-Post Racks – industry-leading relay racks known for strength and stability, including a seismic-rated rack
- RMU markings for fast equipment mounting
- UL Listed options
- Strength and durability derived from lightweight, high-strength 6061-T6 aluminum construction, two top angles or bars, two base angles and roll-formed #12-24 threaded channels
- Up to 1,500 lb load capacity
- Ability to hold larger devices, such as servers, using optional shelves and trays
- A visually appealing installation featuring textured paint to reduce scratches and fingerprints
- Three styles to suit your needs
- Universal Rack – heavy-duty two-post system with various size options to fit any application
- Standard Rack – high-value rack for everyday installations
- Seismic Frame® Two-Post Rack - relay-style rack for use in earthquake prone areas
- Enclosures – available to retrofit existing rack installations
- Accessories, such as cable management, shelves and trays, structural support, monitors and keyboards, power distribution, and grounding and bonding
Choosing a CPI Two-Post Rack System
Features | |||||||
---|---|---|---|---|---|---|---|
Seismic Rack | Universal Rack | Standard Rack | High Density Patching Frame | 110A XLBET Block Mounting | 110 Customizable Frame | MDF 66 Block Mounting System | |
Primary Purpose and Benefit | Designed specifically to support network equipment in areas with seismic activity | Heavy-duty support of equipment and cabling in any installation | Support of equipment and cabling in cost-sensitive or general applications | Support for a high density of patch panels and cabling using integrated vertical cable management | Support of 110A blocks for Extra Large Building Entrance Terminal applications | Support of 110 Blocks (without feet) for Main Distribution Frame (MDF) applications | Support of 66-style blocks for Main Distribution Frame applications |
Capacity | 1,000 lb (453.6 kg) load rating for seismic areas | Up to 1,500 lb | Up to 1,000 lb | 750 lb (110 lb max per fin) | 3600 or 5400 pair (single-sided)
7200 or 10,800 pair (double-sided) | 3600 and 4500 pair (single-sided)
7200 and 9000 pair (double-sided) | 1200 or 2700 pair (single-sided)
2400 or 5400 pair (double-sided) |
Construction | Welded steel | Aluminum | Aluminum | Aluminum frame with engineered polymer rings | Aluminum frame with wire cable managers | Steel frame and steel rings | Aluminum frame with wire management brackets and vertical loops |
Mounting Width | 19" and 23" | 19" EIA, 23" and 35" | 19" EIA for 3"-deep channel 19" EIA, 23" and 35" for 6"-deep channel | 19" EIA | 23" and 35" | 35" | 19” EIA and 35" |
Height | 7’ (44 RMU) | 11 options, ranging from 3’ to 9’ (17 to 58 RMU) | 7’ (45 RMU), 8’ (51 RMU) and 9’ (58 RMU) | 7’ 2" (45 RMU) | 7' | 7' | 7' |
Channel or Trough Depth | 3" or 6" | 3" | 3" and 6" | 3" | 6" | 5-1/2" | 6" |
Colors | Gray, White, Black | Gray, Computer White, Clear and Black | Gray, Computer White, Clear and Black | Black | Gray, Computer White and Black | Black (zinc-plated rings) | Gray, Computer White, Clear and Black |
Assembly | Assembled | Unassembled | Unassembled | Unassembled | Assembled | Assembled (except horizontal rings) | Assembled |
UL Listed Options | Yes | Yes | Yes | Yes | No | No | No |
RMU Markings | Yes | Yes | Yes | Yes | No | No | No |
Other Key Features | Square-punched rails accept cage nut hardware, allowing you to change threads at each RMU to match equipment mounting requirements
Rack is rated for seismic Zone 4 load per Section 4.4 of the Telcordia® Technologies, Inc. GR-63-CORE Network Equipment Building Systems (NEBS) requirements. | Threaded holes in channel for easy attachment of top and base
Four pressed-nut holes per side for easy baying or attachment of vertical managers Enclosures available | Six web channel holes for baying and attachment of vertical managers
Enclosures available | Integrated vertical cable management with two 7’H fins and 28 cable rings
Integrated upper jumper trough | Up to 12 mounting bars included
Up to six small and six large wire cable managers included | Up to 24 horizontal snap-on rings and up to 30 assembled vertical rings included
Removable top and base angles for attachment to wall Threaded studs for grounding lugs | Up to six wire management brackets with integrated vertical loops included |
SEISMIC FRAME TWO-POST RACK
CPI’s Seismic Frame® Two-Post Rack is designed specifically to support network equipment in areas with seismic activity. When earthquakes occur, equipment racks move back-and-forth with the building causing violent vibration through racks and equipment. An earthquake can easily damage or destroy non-seismic racks and equipment that are not carefully braced. The welded, steel Seismic Frame Two-Post Rack resists the swaying motion caused by earthquakes to reduce the amount of vibration transferred through the rack to equipment and is less likely to be damaged during a seismic event, which means faster network recovery.
The Seismic Frame Two-Post Rack supports 19” EIA-310-D compliant or 23” wide equipment with two pairs of mounting rails that can be spaced 6” (150 mm) or 3” (80 mm) apart. The mounting rails are marked and numbered with RMU spaces and can be attached so that numbering starts at the bottom or top of the rack mount space. Choose threaded or square-punched mounting rails with a painted or zinc-plated finish. The mounting holes in threaded mounting rails are tapped with #12-24 threads to speed installation of panel-mount equipment with #12-24 screws. The square-punched rails accept cage nut hardware allowing you to change threads at each RMU to match equipment mounting requirements. CPI’s Seismic Frame Two-Post Rack ships fully assembled and includes a Two Mounting Hole Ground Terminal Block for bonding the rack to the Telecommunications Grounding Busbar and 50 each equipment mounting screws or cage nuts and screws. The rack is rated for a 1,000 lb (453.6 kg) seismic Zone 4 load per Section 4.4 of the Telcordia® Technologies, Inc. GR-63-CORE Network Equipment Building Systems (NEBS) requirements.
Key Features:
- Welded, steel network equipment rack engineered specifically to protect equipment in areas with seismic activity
- Independently seismic-tested and certified; meets industry-recognized Telcordia® Technologies, Inc. GR-63-CORE Network Equipment Building Systems (NEBS) Zone 4 requirements
- 1,000 lb (453.6 kg) load rating for seismic areas
- Supports 19" EIA-310-D compliant rack-mount equipment like patch panels and network switches; 23" wide version also available
- 19" wide rack fits within a 24" (610 mm) raised access floor tile
- Available with #12-24 threaded or square-punched adjustable-depth equipment mounting rails
- Equipment mounting rails have marked and numbered RMU spaces; numbering can start at the top or bottom of the rack
- Fully bonded rack has two masked grounding locations and includes a Two Mounting Hole Ground Terminal Block for easy connection to the Telecommunications Grounding Busbar
- Vertical Power Strips and T-shaped Cable Management Fingers attach directly to the rack channel to provide power and cable distribution for equipment
Application:
- Support rack-mount network equipment in data centers and premise networks where seismic activity exists
Use With:
- Seismic Frame® Two-Post Rack Vertical Cabling Section
- Top-Mount Cable Waterfall Tray
- Cable Management Fingers Kit
- Seismic Frame® Two-Post Rack Concrete Floor Anchor Kit
Related Accessories:
- Heavy Duty Equipment Shelf for 6" (150 mm) Channel
- Vertical Power Strip Mounting Hardware Kit for Vertical Power Strips for Racks
- Vertical Cabling Section Offset Mounting Bracket Kit for Single-Sided Wide Vertical Cabling Section
- 3" (80 mm) Channel Rack-To-Runway Mounting Plate
- Cable Runway J-Bolt Kit
Seismic Frame Two-Post Rack
Part Number | Description | Color | Shipping Weight |
---|---|---|---|
13853-X03 | 19”W x 7’H (2.1 m) 44 RMU, Tapped #12-24 Zinc Rails | Gray, White, Black | 180 lb (81.6 kg) |
13854-X03 | 19”W x 7’H (2.1 m) 44 RMU, Square-Punched Zinc Rails | Gray, White, Black | 178 lb (80.7 kg) |
13855-X03 | 19”W x 7’H (2.1 m) 44 RMU, Tapped #12-24 Painted Rails | Gray, White, Black | 180 lb (81.6 kg) |
13856-X03 | 19”W x 7’H (2.1 m) 44 RMU, Square-Punched Painted Rails | Gray, White, Black | 178 lb (80.7 kg) |
13883-X03 | 23”W x 7’H (2.1 m) 44 RMU, Tapped #12-24 Zinc Rails | Gray, White, Black | 185 lb (83.9 kg) |
13884-X03 | 23”W x 7’H (2.1 m) 44 RMU, Square-Punched Zinc Rails | Gray, White, Black | 183 lb (83.0 kg) |
13885-X03 | 23”W x 7’H (2.1 m) 44 RMU, Tapped #12-24 Painted Rails | Gray, White, Black | 185 lb (83.9 kg) |
13886-X03 | 23”W x 7’H (2.1 m) 44 RMU, Square-Punched Painted Rails | Gray, White, Black | 183 lb (83.0 kg) |

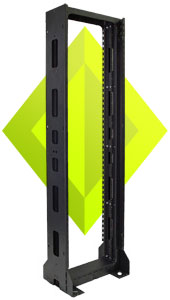

UNIVERSAL RACK
Universal Rack is a heavy duty storage solution for patch panels and network switches and can be used with shelves to hold computer servers. Universal Rack uses less floor space than a cabinet or a four-post rack. Use Universal Rack in telecommunications rooms or equipment rooms to save floor space and hold heavy equipment.
Universal Rack meets project specifications. Universal Rack holds 1,500 lb of equipment and is available UL Listed as a communications circuit accessory. Universal Rack supports 19", 23" or 35" wide rack-mount equipment and shelves and is available in several heights. Equipment attaches to the front or rear of the 3" deep vertical mounting channels with screws. Equipment mounting positions are marked and numbered making it easy to position and install equipment or shelves.
Racks deliver unassembled in a compact carton. Universal Rack is easy to assemble. Components bolt together with included hardware. Assembly holes in the rack uprights are threaded. Assembly takes approximately 10 minutes. Two-post racks must be secured to building structure. Universal Rack has pre-punched base angles making it easy to attach the rack to the floor. Use a CPI installation kit for wood, slab or raised floors.
Most Universal Rack applications require cable management. Vertical cable managers attach directly to the side of Universal Rack. CPI cable managers organize cables by-rack-mount-space simplifying future moves, adds and changes to the network. The best solution includes horizontal managers in between patch panels and network switches to fan patch cords into individual port connections.
Key Features:
- Supports 19" rack-mount equipment designed for two-post panel mounting like patch panels and network switches or use with shelves to support computer servers.
- Easy positioning of equipment or shelves with marked and numbered rack-mount spaces.
- Quick attachment of equipment with threaded equipment mounting holes and included equipment-mounting screws.
- Delivers unassembled in a single carton —quick and easy bolt-together assembly takes less than 10 minutes.
- Lightweight aluminum construction for easy transport and positioning during installation.
- Attach CPI vertical cable managers to the side of the rack through pre-punched holes.
- Secure the rack to the floor quickly with a concrete, wood or raised floor installation kit through pre-punched holes in base angle.
Applications:
- Use with vertical and horizontal cable managers to support interconnect and network equipment in telecommunications rooms, equipment rooms and data centers.
- Use with shelves to support equipment.
Use With:
- MCS Master Cabling Section
- CCS Combination Cabling Section
- Global Vertical Cabling Section
- Universal Horizontal Cable Manager
- Rack and Frame Installation Kit
- Raised Floor Rack Support For 3" Channel
Related Accessories:
- 3" Channel Rack-To-Runway Mounting Plate
- Vertical PDUs for Racks
- Rack Shelves
19"W Universal Rack
19" W | UL Listed | Height | RMU | Shipping Weight |
---|---|---|---|---|
46353-X31 | 48353-X31 | 36" (3ft) | 17 | 25 lb |
46353-X20 | 48353-X20 | 48" (4ft) | 24 | 28 lb |
46353-X19 | 48353-X19 | 60" (5ft) | 31 | 35 lb |
46353-X00 | 48353-X00 | 66" (5ft 6in) | 34 | 36 lb |
46353-X01 | 48353-X01 | 72" (6ft) | 38 | 37 lb |
46353-X02 | 48353-X02 | 78" (6ft 6in) | 41 | 38 lb |
46353-X03 | 48353-X03 | 84" (7ft) | 45 | 39 lb |
46353-X05 | 48353-X05 | 90" (7ft 6in) | 48 | 40 lb |
46353-X15 | 48353-X15 | 96" (8ft) | 51 | 41 lb |
46353-X17 | 48353-X17 | 102" (8ft 6in) | 55 | 41 lb |
46353-X08 | 48353-X08 | 108" (9ft) | 58 | 43 lb |
23"W Universal Rack
23" | UL Listed | Height | RMU | Shipping Weight |
---|---|---|---|---|
46383-X31 | 48383-X31 | 36" (3ft) | 17 | 26 lb |
46383-X20 | 48383-X20 | 48" (4ft) | 24 | 29 lb |
46383-X19 | 48383-X19 | 60" (5ft) | 31 | 36 lb |
46383-X00 | 48383-X00 | 66" (5ft 6in) | 34 | 39 lb |
46383-X01 | 48383-X01 | 72" (6ft) | 38 | 40 lb |
46383-X02 | 48383-X02 | 78" (6ft 6in) | 41 | 41 lb |
46383-X03 | 48383-X03 | 84" (7ft) | 45 | 42 lb |
46383-X05 | 48383-X05 | 90" (7ft 6in) | 48 | 43 lb |
46383-X15 | 48383-X15 | 96" (8ft) | 51 | 44 lb |
46383-X17 | 48383-X17 | 102" (8ft 6in) | 55 | 45 lb |
46383-X08 | 48383-X08 | 108" (9ft) | 58 | 46 lb |
35"W Universal Rack
35" | UL Listed | Height | RMU | Shipping Weight |
---|---|---|---|---|
46363-X01 | N/A | 72" (6ft) | 38 | 49 lb |
46363-X03 | N/A | 84" (7ft) | 45 | 51 lb |
STANDARD RACK
The Standard Rack is a high quality, cost-effective storage solution for patch panels and network switches that uses less floor space than a cabinet or a four-post rack. The small 20.3"W x 15"D (516.1 mm x 381 mm) footprint makes Standard Rack the best choice in many telecommunications and equipment rooms, especially where floor space is limited.
The Standard Rack meets project specifications, will hold 1,000 lb (453.1 kg) of equipment and is UL Listed as a communications circuit accessory. Support 19" EIA wide rack-mount equipment or shelves with the Standard Rack which is available in three heights. Equipment attaches to the front or rear of the 3" deep (80 mm) vertical mounting channels with screws. Mounting positions are marked and numbered making it easy to position and install equipment or shelves.
Racks deliver unassembled in a compact carton, and are easy to assemble. Components bolt together with included hardware; assembly takes approximately 10 minutes. Two-post racks must be secured to building structure. The Standard Rack has pre-punched base angles making it easy to attach the rack to the floor using a CPI installation kit for wood, slab or raised floors.
Because most Standard Rack applications require cable management, CPI’s vertical cable managers attach directly to the side of the Standard Rack. Vertical cable managers organize cables by rack-mount space simplifying future moves, adds and changes to the network. The best solution includes horizontal managers in between patch panels and network switches to fan patch cords into individual port connections.
Key Features:
- Supports 19" EIA rack-mount equipment designed for two-post panel mounting like patch panels and network switches.
- Easy positioning of equipment with marked and numbered rack-mount spaces.
- Quick attachment of equipment with threaded equipment mounting holes and included equipmentmounting screws.
- Delivers unassembled in a single carton—quick and easy bolt-together assembly takes less than 10 minutes.
- Lightweight aluminum construction for easy transport and positioning during installation.
- Quickly attach any CPI vertical cable manager to the side of the rack through pre-punched web channel holes.
- Floor-mount holes on the base angles make it easy to secure the rack to the floor with a concrete, wood or raised floor installation kit.
Applications:
- Use Standard Rack with vertical and horizontal cable managers to support interconnect and network equipment in telecommunications rooms, equipment rooms and data centers.
- Use with shelves to support other equipment.
Use With:
- MCS Master Cabling Section
- CCS Combination Cabling Section
- Universal Horizontal Cable Manager
- Rack and Frame Installation Kit
- Raised Floor Rack Support For 3" (80 mm) Channel
Related Accessories:
- 3" (80 mm) Channel Rack-To-Runway Mounting Plate
- Vertical PDUs for Racks
- Rack Shelves
Part Number | Description | Shipping Weight |
---|---|---|
55053-X03 | 19"W X 7'H (2.1 m), 45 RMU | 31 lb (14.1 kg) |
55053-X15 | 19"W X 8'H (2.4 m), 51 RMU | 37 lb (16.8 kg) |
55053-X08 | 19"W X 9'H (2.7 m), 58 RMU | 40 lb (18.1 kg) |
HIGH DENSITY PATCHING FRAME
Designed to maximize support of patch panels, the High-Density Patching Frame combines the benefits of CPI’s 2-post open racks and vertical cable management into a single package.
- High-density cable management fins provide an integrated vertical pathway for premise cabling and facilitate adherence to bend radius requirements
- Inverted U-shaped tabs formed into the cable management fins provide a quick method for securing premise cabling with Saf-T-Grip® Cable Management Straps
- Cable management rings and integrated upper jumper tray provide slack management for patch cords
- Feed patch cords front-to-rear through edge-protected passthrough ports
- Base angles are pre-punched for direct attachment to building structure and feature a U-shaped cut-out for cable delivered from under a raised floor
- Connect Frames side-by-side into continuous rows with an accessory baying kit
- Attach Cable Runway to the top of the frame with J-bolts in the perpendicular orientation or a Mounting Kit in the parallel orientation
Specifications:
- Overall dimensions of 29.1"W x 86.0"H x 18.6"D
- Provides 19"W x 45 RMU of mounting space
- Features EIA-310-D, Universal spacing, threaded #12-24 mounting holes
- Frame components are aluminum, while cable rings are an engineered polymer
- Finished with black, powder coat paint
- Ships unassembled and individually packaged
- Assembly requires one person, a standard ratchet/wrench set, screwdriver, and square
- Attach to building structure using one Rack Installation Kit per frame
- Supports 750 lb (110 lb maximum per cable fin)
Part Number | Description | Shipping Weight |
---|---|---|
55100-703 | 19"W x 7'H High Density Patching Frame, Black | 63 lb |
55104-701 | Baying Kit, Black | 1 lb |
55105-712 | 12"W Runway Mounting Kit | 1 lb |
55105-718 | 18"W Runway Mounting Kit | 1 lb |
55105-724 | 24"W Runway Mounting Kit | 1 lb |

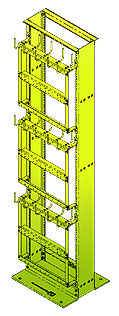

XLBET 110A BLOCK MOUNTING SYSTEM
The XLBET (Extra Large Building Entrance Terminal) 110A Block Mounting System has been designed for high-density, spacesaving 110A (with legs) style block mounting. The 8” W x 6.6”D large wire managers provide distinct vertical and horizontal cable and jumper pathways for efficient space usage. The basic frame (23” or 35”), mounting bars, and the small and large wire managers are available under one part number. The XLBET 110A Block Mounting System ships completely assembled for quick, easy installation.- Ships fully assembled for quick, easy installation
- Supports 300 pair 110A style blocks
- 3600 pair in two columns to 5400 pair in three columns can be mounted per side depending on the frame selected
- Double-sided version provides 7200 to 10,800 pair depending on the frame selected
- Horizontal and vertical cable managers provide clearly defined cable routing of large quantities of cross-connect wires
- 6” deep rack channel provides extra cable capacity
11810-X36 Kit (3600 pair/12 blocks/single sided) consists of:
- (1) 23” Standard Rack, 6” deep (P/N 66383-X03)
- (6) XLBET Mounting Bars (P/N 11770-X23)
- (3) XLBET Small Wire Managers (P/N 11771-X23)
- (3) XLBET Large Wire Managers (P/N 11772-X23)
- (1) 23” Standard Rack, 6” deep (P/N 66383-X03)
- (12) XLBET Mounting Bars (P/N 11770-X23)
- (6) XLBET Small Wire Managers (P/N 11771-X23)
- (6) XLBET Large Wire Managers (P/N 11772-X23)
- (1) 35” Standard Rack, 6” deep (P/N 66363-X03)
- (6) XLBET Mounting Bars (P/N 11880-X35)
- (3) XLBET Small Wire Managers (P/N 11881-X35)
- (3) XLBET Large Wire Managers (P/N 11882-X35)
- (1) 35” Standard Rack, 6” deep (P/N 66363-X03)
- (12) XLBET Mounting Bars (P/N 11880-X35)
- (6) XLBET Small Wire Managers (P/N 11881-X35)
- (6) XLBET Large Wire Managers (P/N 11882-X35)
3600 Pair | 7200 Pair | 5400 Pair | 10,800 Pair | Color |
---|---|---|---|---|
23" Width | 23" Width | 35" Width | 35" Width | |
11810-136 | 11810-172 | 11910-154 | 11910-180 | Gray |
11810-236 | 11810-272 | 11910-254 | 11910-280 | White |
11810-736 | 11810-772 | 11910-754 | 11910-780 | Black |

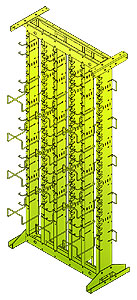

110 CUSTOMIZABLE FRAME
The single-sided 110 Customizable Frame supports up to 4500 pair while the double-sided model holds up to 9000 pair. Multiple racks can also be bayed together. The steel frame consists of three vertical channels and top and bottom panels. Openings between each channel provide space for vertical cable management.- Supports high-density 110D blocks without feet
- Snap-on horizontal and preassembled vertical cable rings improve cable organization and performance
- Top and base angles can be removed for mounting the frame to the wall
- Threaded studs accommodate compression lugs to provide effective grounding
110D Block Mounting Brackets are designed for wall- or rackmount, providing integrated wire management and mounting surfaces for 100 pair or 300 pair 110D blocks. Separate cabling and jumper paths allow for maximum cabling capacity and ease of installation.
Four 600 pair Mounting Brackets will mount to each side of any 19”W CPI Rack. Four 900 pair or three 1800 pair Mounting Brackets will mount to each side of any 35”W CPI Rack.
Description | Description | Shipping Weight |
---|---|---|
12922-X01 | 36.32"W x 84"H x 20.29"D , Single-Sided (922.5 mm x 2130 mm x 515.4 mm) | 169 lb (76.7 kg) |
12923-X01 | 36.32"W x 84"H x 29.6"D, Double-Sided (922.5 mm x 2130 mm x 752.0 mm) | 295 lb (133.8 kg) |
13431-X01 | 600 Pair Manager for 19" Rack or Wall-Mount | n/a |
13432-X01 | 900 Pair Manager for 35" Rack or Wall-Mount | n/a |
13433-X01 | 1800 Pair Manager for 35" Rack or Wall-Mount | n/a |

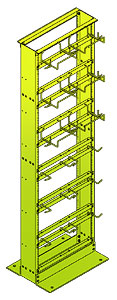

MDF 66 BLOCK MOUNTING SYSTEM 19" AND 35"

Premise cables enter the top or bottom of the rack between the 6" deep rack channel uprights. 66-style blocks attach to the front of the block mounting brackets (mounting screws are included). Use the U-shaped cable rings on the top of the brackets to route jumper cords between blocks. Available in single-sided or double-sided configurations, the frame can be junctioned together in multiple frame line-ups. The MDF66 Block Mounting System is pre-assembled and ready-to-go right out of the box. Choose the 19" or 35" rack, single- or double-sided, in black, gray, white or clear (grained aluminum) finish.
The MDF66 Block Mounting System is pre-assembled and ready-to-go right out of the box. Choose the 19" or 35" rack, single- or double-sided, in black, gray, white or clear (grained aluminum) finish.
- System ships fully assembled
- 1200 to 2700 pair can be mounted per side depending on the frame selected
- Double-sided version provides 2400 to 5400 pair depending on the frame selected
- Large cable loops attached along top provide efficient cable management
- Supports 66M1-25, 66M1-50, 66M4-50, 66M4-100 blocks as well as 66 Type Blocks with side mounted connectors (pair count will be less due to additional space requirement)
12577-X12 Kit (24 Blocks/1200 pair/single-sided) consists of:
- (1) 19" wide, 6" Deep Standard Rack (P/N 66353-X03)
- (3) 19" 66 Block Mounting Brackets (P/N 11177-X01)
- (1) 19" wide, 6" Deep Standard Rack (P/N 66353-X03)
- (6) 19" wide, 66 Block Mounting Brackets (P/N 11177-X01)
- (1) 35" wide, 6" Deep Standard Rack (P/N 66363-X03)
- (3) 35" wide, 66 Block Mounting Brackets (P/N 11188-X01)
- (1) 35" wide, 6" Deep Standard Rack (P/N 66363-X03)
- (6) 35" wide, 66 Block Mounting Brackets (P/N 11188-X01)
Part Number | ||
---|---|---|
1200 Pair Kit | 2400 Pair Kit | |
19" Width | 12577-X12 | 12577-X24 |
2700 Pair Kit | 5400 Pair Kit | |
35" Width | 12578-X27 | 12578-X54 |
