Solutions for All Types of Residential & Commercial Buildings

In todayís society, an increasing demand is placed on building security. An entry system must have certain criteria: it needs to match a tenantís lifestyle, must be reliable, simple to use, and economical to install. Aiphoneís GH System meets all of these demands.

The GH System offers simple hands-free tenant stations, provides unparalleled reliability, and is backed by the best support in the industry. This system can accommodate up to 500 units, 16 entrance panels, and 4 security guard stations. Installation is quick and easy using no more than four wires, and the included programming software is intuitive to use.

When you use Aiphone, youíre using products you can count on from a name you can trust.

The GH System offers several benefits over other traditional telephone-style entry systems. Itís a direct connect system that does not require an outside phone line at the tenant location and will never incur additional phone company charges. This series improves security by requiring individuals to be at the tenant station to answer calls and grant access. In addition, the GH system offers security guard stations, open voice communication, and tenant monitoring of the entry.

Specifications

FeatureDescription
Power Supply24V DC - Use PS-2410LC or PS-2410LD (for GH-BC, GH-VBC, GH-NS, GH-MK and GH-BCX)
Current Consumption GH-BC: 0.9 A GH-VBC: 0.9 A GH-NS: 0.13 A GH-MK: 0.18 A GH-BCX: 0.35 A
Call Tone There are three different types of call tones: from entrance station, security guard station, and doorbell
Talk & Video Path Secure single channel
Communication Hands-free, voice-actuated communication or push-to-talk communication
Door Release Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact
Wiring Two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video)
Type of Cables Pair cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG



System Components

ImageModel No.Name
GHV-DES 10 Key GH System Entry Panel

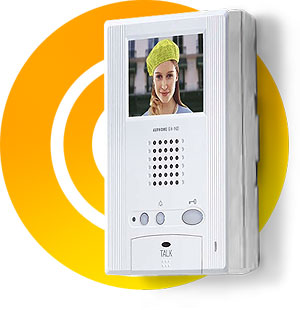

GH-1KD Clear Video Handsfree Tenant Station for GH Multi-Unit Entry System
GFK-PS Panic Call Switch for GF: Multi-Unit Entry System
GF-VP Video Module Panel for GF: Multi-Unit Entry Systems
GH-DP Audio Module Panel for GH Multi-Unit Entry System
GF-NSP LCD Display Module Panel for GF: Multi-Unit Entry System
GF-10KP 10-Key Module Panel for GF: Multi-Unit Entry System
GF-4P Additional 4-Call Panel for GF Entry System
GF-2P Additional 2-Call Panel for GF Entry System
GF-AP Panel for GF-AD Address Module
GF-HID Proximity Card Reader Module for GF
GF-2B Back Box for GF Common 2-Wire Multi-Unit Entry System
GF-3B Back Box for GF Common 2-Wire Multi-Unit Entry System

GF-202H
GF-203H
Rain Hood for GF: Multi-Unit Entry Systems
  • 9-9/16 x 11-7/16"
  • 13-5/16" x 11-7/16"
GH-BC Audio Bus Control Unit for GH Multi-Unit Entry System
GH-VBC Video Bus Control Unit for GH Multi-Unit Entry System
GH-4Z 4-Monitor Video Distribution Adaptor for GH Multi-Unit Entry System
GF-OP3 3 Panel Postal Lock for GF System (1 Open Panel Space)
GFW-S Desk Stand for GF-MK
PS-2420UL 24V DC, 2A Power Supply
GF-C 3-1/8 inch (80cm) Connecting Wire
KCW-D Video Demodulator for the KC Color Video System

ImageModel No.Name
GHA-DES 10-Key GF System Entry Panel
GH-1AD Audio Only Tenant Station
GH-VA Video Module for GH Multi-Unit Entry System
GH-DA Audio Module for GH Multi-Unit Entry System
GH-NS Digital LCD Directory Display Module
GH-10K 10 Key Module for GH Series
GH-SW Call Switch Module for GH Multi-Unit Entry System
GF-3P Additional 3-Call Panel for GF Entry System
GF-1P Additional 1-Call Panel for GF Entry System
GF-BP Blank Panel for GF Multi-Entry System
GF-HID-I iClass Card Reader Module for GF
GF-2F 2-Module Front Frame
GF-3F 3-Module Front Frame

GF-202HB
GF-203HB
Hooded Surface-Mount Box
  • 9-9/16 x 11-7/16"
  • 13-5/16" x 11-7/16"
GH-BCX Expanded Audio Control Unit
GH-VBX Expanded Video Control Unit
GF-OP2 2 Panel Postal Lock for GF System
GH-MK Concierge/Guard Station
GH-RY Light Control and External Signaling Relay
W-DIN11 DIN-Rail Mounting Bracket for GF-BC
MCW-S/A Desk Mount Stand
