The KC-IFA is a network video interface adapter that allows the Aiphone color video door station to be connected through a video server (not supplied by Aiphone) to any PC connected to a LAN or WAN network. This provides audio and video identification and access control for a person at the camera location, answered from a PC. The KCS-IFA network video interface adapter kit is composed of a color KC-DAR Video Door Station, a KC-IFA adapter and a PS-2420UL power supply. The system’s features include alarm notification, event recording, remote door or gate answering and door release control. This enhanced system meets applications that need a large quantity of video door stations and have the capacity of using a local desktop computer. The KCS-IFA set provides a video entry solution not seen with previous Aiphone video entry systems.
Features:
- Set Includes video door station (KC-DAR), adapter (KC-IFA) and power supply (PS-2420UL)
- Allows audio communication, camera control & door release via PC
- Visually identifies visitors from remote locations
- Any number of sets may be installed at a site
- Voice level adjustable
- Video signal level adjustable
- Selection of video servers available (Not available from Aiphone, click here for a list of tested and approved video servers.)
| Specifications | |
|---|---|
| Power Source | 24V DC, 2A |
| Current Consumption | 400 mA, Max. |
| Video Out | NTSC, 1Vp-p |
| Audio In | 10K Ohm |
| Audio Out | 600 Ohm |
| Call-in Signal | N/O - COM - N/C, 24V DC @ 1A
(Pre-set at .5 sec., adjustable to 30 sec.) |
| Tilt Up/Down | TTL/CMOS low level control |
| Weight | 4.3 lbs |
| Dimensions (HxWxD) | 1 - 3/47”H x 7 -15/16”W x 9”D |
| KC-DAR to KC-IFA | 2 parallel wires, non-polarized (*841802) 22 AWG = 165’, 18 AWG = 330’ |

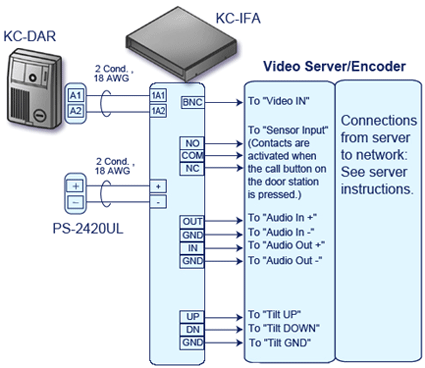

Wiring Diagram:
|
NOTE:
|
Approved Video Servers
VCS Controlware Smart Sight Network VideoJet 100
AI-VJ100SAS1500e-TA
www.cware.com www.smartsightnetworks.com
