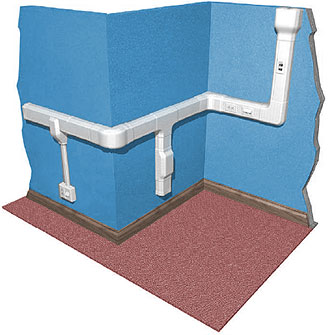

PAN-WAY Metal and Non-metallic Surface Raceway provides maximum flexibility for routing, protecting and concealing high performance copper, voice, video, fiber-optic and electrical wiring within any enterprise market. All of PANDUIT surface raceways provide a full complement of fittings that are designed to maintain proper bend radius control, channel capacity and separation in applications requiring both data cabling and power wiring PANDUIT surface raceway products are tamper resistant, offering increased safety benefits, discourages unauthorized access, protects sensitive cabling from accidental damage, and physical contact with electrical wiring.
PAN-WAY Surface Raceway Systems are designed with attention to form as well as function, allows for moves, adds and changes for future upgrades, and are aesthetically pleasing to lend with any décor. They are available in white and almond color to match any decor and most popular electrical outlets. PAN-WAY Metal and Non-metallic Surface Raceway Systems work with PANDUIT MINI-COM Modules for complete connectivity possibilities.
- Eliminates the need to purchase expensive furniture that incorporates internal data passages or retro-fit kits that require dismantling of furniture
- Is supplied with adhesive backing for fast and easy installation
- Installs on top of existing furniture partitions, minimizing occupant disturbance
- Easily accommodates frequent relocation of personnel within the facility
- Is the only “universal – off the shelf” modular furniture raceway system intended for routing and terminating data cabling on furniture partitions
- Can be installed by any knowledgeable contractor or facilities personnel
- Patented (innovative) corner termination option utilizes the typically unused area of the cubical, saving valuable workspace
- Great for an office or even a home. Used by small businesses, restaurants, hospitals, medical offices, and schools.
PANDUIT metal raceway is designed with labor saving features to increase productivity and lower installed costs, while incorporating benefits of increased safety and cable protection. PAN-WAY Metal Raceway is an innovative routing solution that offers superior benefits over competitive systems:
- Large raceway channel provides maximum capacity
- Fittings maintain 40mm (1.6") bend radius control
- Multi-channel two-piece design
- Aesthetically pleasing
- Lightweight
- Tamper resistant
- Aesthetically pleasing
- Lightweight
- Tamper resistant
- Fittings maintain 1" bend radius control
- T-70 utilizes a single channel with snap-in divider wall to provide multi-channel capability
- Twin-70 utilizes two independent channels and covers to provide multi-channel capability
- Multi-directional cover hinge allows cable installation from either side
- Hinged data and power brackets provide easy access for terminating outlets
- Aesthetically pleasing
- Lightweight
- Tamper resistant
- Fittings maintain 1" bend radius control
- Optional factory applied adhesive backing speeds installation
- Snap-on faceplates install without the use of screws providing faster installation and superior aesthetics
- FAST-SNAP Boxes assemble without the use of screws and accept PAN-WAY Snap-On Faceplates
- Snap-on communication faceplates are available in horizontal or vertical sloped outlet configurations
- Snap-on electrical faceplates are available in 106duplex or rectangular styles
- LD2P10 features one-piece multi-channel design forboth power and data applications
- LDPH is a tamper resistant two-piece latching surface raceway supplied with pre-applied adhesive backed tape.
- LD features one-piece single channel design for data routing
- LDS features one-piece single channel tamper resistant design with maximum security for power OR data applications
- UL and CSA rated 600 V; meets UL 5A and CSA C22.2 No. 62.1-03 standards; FT4 rated
- Two-piece hinged design allows cables to be laid in
- Tamper resistant
- Factory applied adhesive backing speeds installation
- Terminates using surface mount outlet box solutions or PANDUIT MINI-COM Surface Mount Boxes
- UL and CSA rated 600 V; meets UL 5A and CSA C22.2 No. 62.1-03 standards; FT4 rated
- Tamper resistant non-hinged design
- Factory applied adhesive backing speeds installation
- Type LDS is the only non-metallic raceway that is bendable in low voltage applications to route around and over obstructions
- LDS raceway requires screw mounting using the LMD mounting straps for power cabling installations
- Terminates using surface mount outlet box solutions or PANDUIT MINI-COM Surface Mount Boxes
TG-70 Non-Metallic Surface Raceway
PAN-WAY TG-70 Non-Metallic Surface Raceway is a multi-channel raceway, which provides a solution for routing copper, fiber optic, and/or power cabling when maximum cable capacity is required.
T-70 & TWIN-70 Non-Metallic Surface Raceway
PAN-WAY T-70 and Twin-70 Non-Metallic Surface Raceways are multi-channel raceways which provide solutions for routing copper, fiber optic, and/or power cabling along fixed perimeter walls. T-70 features the WORKSTATION OUTLET CENTER Offset Box which provides an offset solution to maximize channel capacity and outlet density. Twin-70 offers two totally independent channels maintained throughout the system for independent access to power,copper,and fiber optic cabling.
T-45 Non-Metallic Surface Raceway
PAN-WAY T-45 Non-Metallic Surface Raceway is a multi-channel raceway which provides a solution for routing copper, fiber optic, and/or power cabling along fixed perimeter walls. T-45 surface raceway terminates using the T-45 hinged data and power brackets, T-45 offset box and select PAN-WAY Surface Mount Outlet Boxes.
SNAP-ON Faceplates & Surface Mount Outlet Boxes
PAN-WAY Snap-On Faceplates are designed for use with PANDUIT surface raceway systems and install faster than conventional screw-on faceplates,reducing labor costs and providing a more aesthetic appearance. PAN-WAY Snap-On Communication Faceplates are available in vertical and horizontal orientation and accept PANDUIT MINI-COM Copper and Fiber Optic Modules. Electrical outlets are available in colors to complement PANDUIT raceway and are available in 20 A, 106 duplex, rectangular, TVSS and GFCI.
LD Profile Non-Metallic Surface Raceway
PAN-WAY LD Profile Raceway is available in single and multi-channel styles to provide a solution for routing copper,fiber optic,and power cabling along fixed perimeter walls.
LDPH Surface Raceway System
LDS Surface Raceway System
