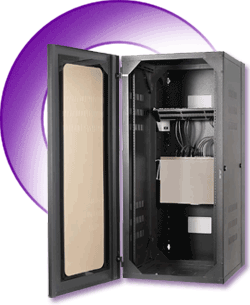

With cornerstone hinging these wall mount cabinets install quickly in easy to manage segments. Rear section easily configured for a wide variety of applicataions using a broad variety of accessories that quickly clip into place. Cabinet Construction supports 250 pound load capacity with minimum sag. Rugged construction and heavy duty locks and hinges provide long life and a secure environment.

  • Adjustable Rails
    from front to rear - notched for easy location.
  • Dedicated Bonding Points
    speed grounding.
  • Specifically Designed to Mount
    to plywood backboards, steel and wood studded walls, cinder block and concrete walls.
  • Vented Sides
    for active equipment with optional filters.
  • Structured Cable Routing
    between front and rear sections.
  • Eccentric knockouts
    Simplify conduit connection.


Specifications
  • 400 lb. load capacity,
  • Material:
    • Rear section, center section: 14ga. cold rolled steel.
    • Top/bottom hinge cover panel: 11 ga. cold rolled steel.
    • Front door: 18 ga. cold rolled steel.
    • Hinged mounting plates (rear door): 11 ga. cold rolled steel.
  • Finish: painted black.
  • 19” rack-style rails tapped #12-24.
  • 19” rack mounting width per EIA-310-D.
  • Grounding provisions per TIA-607.
  • Acrylic window tinted smoke gray.
  • 16” stud mounting.
  • Front door and rear locks both keyed alike with key #CH751.
  • Wall mounting hardware is 3/8" or #8 screws.
  • UL 1863 Listed.

Rear Wall Mounting System

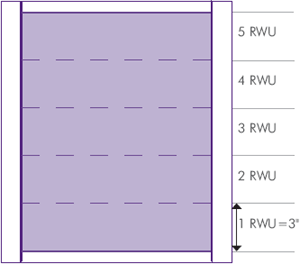

The rear wall of both the QUADCAB and user-configurable RE-BOX wall mount cabinets feature an innovative clip system. This system allows the user to clip equipment mounting brackets to the rear wall to accept everything from switches to coax splitters. The diagram shown explains how to use this system.

A fundamental benefit that the QUADCAB and the RE-BOX wall mount cabinets offer is their versatility and ability to be configured to accept a wide variety of equipment (including panels, blocks, switches, fiber, A/V, coax, UPSs).

  1. Determine how many rear wall units your cabinet has.
  2. Determine which brackets your application requires and howmuch space each occupies.

QuadCab Wall Mount Cabinets

DepthDoor StyleColorCatalog No.
24" height / 12 rack units
Catalog No.
36" height / 19 rack units
Catalog No.
48" height / 26 rack units
20"WindowBlackHSQ24HSQ36HSQ48
26"WindowBlackHSQ2426HSQ3626HSQ4826
36"WindowBlackHSQ2436HSQ3636HSQ4836
20"SolidBlackHSQ24SHSQ36SHSQ48S
26"SolidBlackHSQ24S26HSQ36S26HSQ48S26
36"SolidBlackHSQ24S36HSQ36S36HSQ48S36
