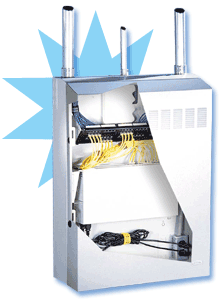

The REBOX Cabinets are specifically designed for housing remote and network equipment.
REBOX cabinets exceed the stringent requirements of UL and Telcordia enclosure standards. The resulting safe and secure envrionment surpasses the industry for protecting communications equipment in locations such as classrooms, warehouses, and retail outlets.
Use the pre-configured REBOX as a small remote data center. Each cabinet includes dedicated mounting for hubs and other active equipment and another dedicated mounting area for patch panels.
Use the unloaded REBOX in applications such as horizontal cross connects or the telecommunications room. The modular design of this cabinet is very versatile, allowing the installer to configure the cabinet with a wide variety of accessories to mount any type of components.
- Cable entry knockouts for conduit sizes from 1/2" to 1.5"
- Unique knockout for metal and PVC raceway
- Accommodates fiber and multi-media Snap Fit connectors
- Patch panel bracket allows bottom-hinged, front-access termination
- Flexible mounting for active equipment including hubs and UPS
- Door lifts off when open for easy installation, hinge easily reversed in the field
- Pre-configured, surge-protected power and fan
- Engineered airflow to prolong the life of active equipment
- Easily expanded in the field to support future growth
- Mounting for 19" patch panel hinges down for front access termination
- Durable powder coat finish protects equipment in isolated locations
- Wide range of standard kits for maximum versitility
- Knife-edge design and slopped door resists dust, water, and vandalism
- 16 gauge CRS welded construction
- Designed specifically for hostile envrionments:
- Tamper resistant per Tecordia GR-487-CORE
- Ventilation pattern developed to comply with UL 1950
- Designed to meet NEMA 2
- 2 sets of universal mounting rails with #12-24 tapped holes 5/8", 5/8", 1/2" EIA standard pattern
- Load capacity: 100 lbs
- Accepts maximum hub depth of 14.5" (RE2 and RE4) or 22" (RE4X)
- Abundant cable entry through sides, bottom, and top - compatible with major raceway and popular conduit sizes
- Designed to dissipate 160W - industry maximum without fan
- Weight:
- RE4 = 50.6 lbs.
- RE2 = 45.1 lbs.
- Usable rack space:
- RE2: 2-switch, 2-panels
- RE4: 5-switch, 4-panels
- RE4X: 5-switch, 4-panels
 |
Pre-Configured Cabinet Includes:
|
| REBOX - Remote Equipment Cabinet (Pre-configured) | ||||||
|---|---|---|---|---|---|---|
| Catalog No. | Capacity | Max. Hub Depth | Height | Width | Depth | Color |
| RE2 | 2 hubs | 14" | 32.0" | 24.2" | 7" | Light gray |
| RE2B | 2 hubs | 14" | 32.0" | 24.2" | 7" | Black |
| RE4 | 4 hubs | 14" | 32.0" | 24.2" | 10" | Light gray |
| RE4B | 4 hubs | 14" | 32.0" | 24.2" | 10" | Black |
| RE4X | 4 hubs | 22" | 42.0" | 24.2" | 10" | Light gray |
| RE4Xb | 4 hubs | 22" | 42.0" | 24.2" | 10" | Black |
|
Unloaded Cabinet Includes: 16 guage equipment cabinet specifically designed for housing remote and network equipment. Use for horizontal cross connects or small telecommunications rooms. The unloaded REBOX can be configured to accept wall mount, rack mount connecting hardware and active equipment. The mounting rails are not included, providing for flexibility to configure your requirments.
|
| REBOX - Remote Equipment Cabinet (Unloaded) | |||||
|---|---|---|---|---|---|
| Catalog No. | Rear Wall Units | Height | Width | Depth | Color |
| IDF24 | 3 | 24" | 24.2" | 10" | Light Gray |
| IDF32 | 4 | 32" | 24.2" | 10" | Light Gray |
| IDF42 | 5 | 42" | 24.2" | 10" | Light Gray |
REBOX Accessories
| REBOX Accessories | |||
|---|---|---|---|
| Image | Catalog # | Description | Delivery Includes |
 | REKTJ | Top-to-bottom kit for us with all REBOX cabinets - Finish: light gray |
|
 | REKSJ20 | Side-by-side kit for use with IDF24 - Finish: light gray |
|
| - | REKSJ30 | Side-by-side kit for use with RE2, RE4, and IDF32 - Finish: light gray |
|
| - | REKSJ40 | Side-by-side kit for use with RE4X and IDF42 - Finish: light gray |
|
 | REKU(B) | Converts an RE2 to an RE4 for added space - Available in light gray (REKU) or black (REKUB) |
|
 | REKF | Increases ventilation - Order 1 per RE2, 2 per RE4, RE4X, and IDFXX |
|
 | REKFF | Dust filter for air intake when using fans (for RE4, RE4X, IDF only) |
|
 | REKS | Use to dampen noise generated from active eguipment in cabinet |
|
 | REKG | Enhances protection against dust and water, and performance of fan kit |
|
| REBOX Accessories (Rear Wall Configuration) | |||
|---|---|---|---|
| Image | Catalog No. | Description | Delivery Includes: |
 | REKBB20 | Provides universal mounting for wall mounted brackets, blocks, splitters, hubs, and other devices. Precut and designed for easy installation into cabinet. (20"(H), 4 rear panel spaces) |
|
| - | REKBB30 | Provides universal mounting for wall mounted brackets, blocks, splitters, hubs, and other devices. Precut and designed for easy installation into cabinet. (30"(H), 5 rear panel spaces) |
|
| - | REKBB40 | Provides universal mounting for wall mounted brackets, blocks, splitters, hubs, and other devices. Precut and designed for easy installation into cabinet. (40"(H), 7 rear panel spaces) |
|
 | REKZ | Provides 5U of 19" rack space for rack mount hubs and switches. Space occupied on rear wall dependent upon size of equipment. |
|
 | REK110 | Accepts (5) 100-pair 110 blocks with legs or (5) devices mounted on 89B brackets such as 66 blocks or 12 port panels. Occupies 2 rear panel spaces. |
|
 | REK19 | Provides 4U of 19" rack space to mount patch panels. Hinges down to provide access to rear of panel for ease of termination. Occupies 1 rear panel space. | |
 | REKP | Occupies left or right side of 1 rear panel space. |
|
 | REKFP | Accepts one fiber FSP adapter panel. Occupies no rear panel spaces. |
|
| Accessories for REBOX and QuadCab | |||
|---|---|---|---|
| Image | Catalog No. | Description | Delivery Includes |
 | MCCBP350 | Use as shelf in REBOX. |
|
 | CTK | Adhesive mounting bracket can be located along cabinet interior as appropriate. |
|
 | CKL751 | Use to change key type to meet your application for both QuadCab and REBOX. (Standard kit to replace existing lock) |
|
| - | CKL333 | Use to change key type to meet your application for both QuadCab and REBOX. (Change key from CH751 to 333) |
|
| - | CKL716 | Use to change key type to meet your application for both QuadCab and REBOX. (To convert to Bellcor 716 lock) |
|
| - | CKLE | Use to change key type to meet your application for both QuadCab and REBOX. (To convert to European lock) |
|
 | REKH | Allows user to secure cabinet with padlock. |
|
 | REKMT10 | Mates MT10 large capacity, 3-channel, non-metallic surface raceway to top of REBOX and IDF cabinets to deliver both electrical and communication cables. |
|
 | REKGB | Use to ground cabinet components to common ground. Can be used in conjunction with the MCCGBAR and HPW-CGPK10. |
|
Click here to view Hubbell's REBOX Remote Equipment Cabinet PDF.
