KX-TDA0141 Site Planning

Choosing the best site for the Cell Station requires careful planning and testing of essential areas. The best location may not always be convenient for installation. Read the following information before installing the unit.

  • Understanding Radio Waves
  • Cell Station Coverage Area
  • Setting and Installing the Cell Station Temporarily for Site Survey
  • Connecting a Cell Station to the PBX
  • Connecting the Cell Station

  • Understanding Radio Waves

    Characteristics of Radio Waves: The transmission of radio waves and the Cell Station coverage area depend on the structure and materials of the building. Office equipment, such as computers and fax machines, can interfere with radio waves. Such equipment may create noise or interfere with the performance of the PS.

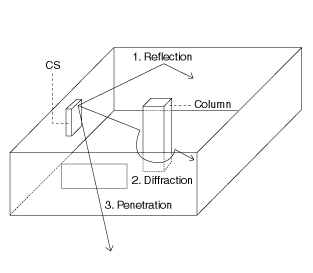

    The illustration shows the special transmitting patterns of radio waves.

    1. Radio waves are reflected by objects such as those made of metal
    2. Radio waves are diffracted by objects such as metallic columns
    3. Radio waves penetrate objects such as those made of glass

    Relationships Between Radio Waves and Building Structure and Materials

    • The Cell Station coverage area is affected more by the building materials and their thickness than the number of obstacles
    • Radio waves tend to be reflected or diffracted by conductive objects and rarely penetrate them
    • Radio waves tend to penetrate insulated objects and are rarely reflected by them
    • Radio waves penetrate thin objects more than thick objects
    • The table below shows the transmission tendency of radio waves when they reach objects made from various materials

    Radio Wave Penetration

    ObjectMaterialTransmission Tendency
    WallConcreteThe thicker they are, the less radio waves penetrate them.
     FerroconcreteRadio waves can penetrate them, but the more iron there is, the more radio waves are reflected.
    WindowGlassRadio waves usually penetrate them.
     Glass with wire netsRadio waves can penetrate them, but tend to be reflected.
     Glass covered with heat-resistant filmRadio waves are weakened considerably when they penetrate windows.
    FloorFerroconcreteRadio waves can penetrate them, but the more iron there is, the more radio waves are reflected.
    PartitionSteelRadio waves are reflected and rarely penetrate them.
     Plywood, GlassRadio waves usually penetrate them.
    ColumnFerroconcreteRadio waves can penetrate them, but the more iron there is, the more radio waves tend to be reflected or diffracted.
     MetalRadio waves tend to be reflected or diffracted.
    CabinetSteelRadio waves are usually reflected or diffracted, and rarely penetrate them.
     WoodRadio waves can penetrate them, but they are weakened.

    Back to Top


    Cell Station Coverage Area

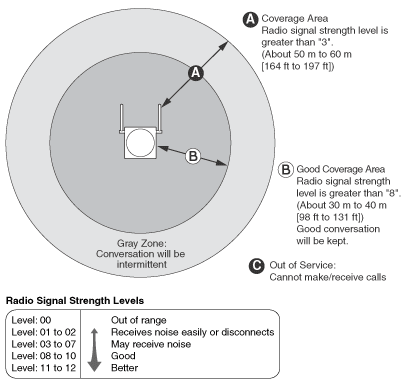

    The example below shows the size of the coverage area of 1 Cell Station if it is installed where there is no obstacle.
    Note: Radio signal strength levels are measured during the site survey.

    Site Survey Preparation

    1. Obtain the map and investigate the installation site.

    • Check the obstacles (e.g., shelves, columns, and partitions).
    • Check the materials of the structures (e.g., metal, concrete, and plywood).
    • Check the layout and dimensions of the room, corridor, etc.
    • Write down the above information to the map.

    2. Examine the service area demanded by the user on the map, referring to the following example.

    • Draw the coverage area around a Cell Station. Extend the coverage area to 30 to 60 meters (98 to 197 feet) in one direction, depending on the materials of the building structures and obstacles in the installation site. Note that a Cell Station cannot be installed outside a building.
    • If one Cell Station cannot cover the entire service area, install additional Cell Stations as required. Overlap the coverage areas of adjacent Cell Stations. Where Cell Station coverage areas overlap, the PS will start call handover to the next Cell Station if the signal from one Cell Station becomes weak. However, if a PS moves away from a Cell Station and there are no Cell Stations available for handover, the PS may go out of range and the call could be lost. If the signal from the Cell Station fades, due to the structure of the building, there may be some handover delay. The user will hear a range warning before handover in this case. This also applies in the case of interference from 2.4 GHz apparatus.

    Example: Installing in a Room Separated by Walls

      Things to take note of:
      • The room is separated by walls.
      • The room is surrounded by concrete walls.

      Back to Top


      Setting and Installing the Cell Station Temporarily for Site Survey

      1. Switch the Radio Signal Test switch from OFF to ON.
      2. Set the Cell Station number switches as desired.

      DIP Switch Settings

      Note: AC Connection

      • To see the radio signal strength of more than 1 Cell Station, a Cell Station number must be set for each Cell Station.
      • If more than 1 Cell Station is in Radio Signal Test mode, each Cell Station must have a unique number.

      3. After setting the DIP switch, connect an AC adapter or battery box to the Cell Station using a power supply adapter. 4. Install the Cell Station temporarily for the site survey. Install the Cell Station at least 2 m (6.6 ft) above the floor, keeping the antennas in the upright position.

      Back to Top


      Connecting a Cell Station to the PBX

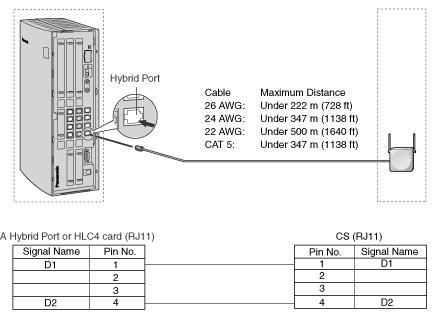

      Refer to the following example to connect a Cell Station to the PBX:

      CS to KSU connection
      Accessory and User-supplied Items for the Cell Station
      Accessory (included): Screws 2, Washers 2
      User-supplied (not included): RJ11 connector

      Back to Top


      Connecting the Cell Station

      Connecting the CS 1. Connect the cable from a Hybrid Port or the HLC4card to the Cell Station.
      2. Pass the cable through the groove of the Cell Station (in any direction depending on your preference).

      Back to Top
