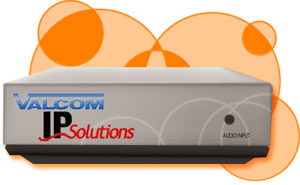

VIP-820 Networked Trunk Port

The VIP-820 Trunk Port connects to extension or stations and can also integrate to PBX dedicated line ports. Use to tie line PBX’s and save leased line charges. Use your IP phone through an FXS port to access Valcom Paging Systems in the building or across town.

Applications:

  • PBX to PBX connection across LAN/WAN
  • IP phone enabled paging unit to LAN/WAN interface
  • PBX to paging zone(s) via VIP800(s)
Features:
  • No server required
  • Recognition of DTMF tones
  • Generation of DTMF tones
  • Two digit dial plan
  • No dial/auto destination
  • Easy windows based setup paging access
  • Paging access
Specifications:
  • Protocols -
    • UDP/IP, ARP, IGMP, v1
  • Voice Algorithm -
    • G.711 (64kbits/s) (ulaw)
    • Echo Suppression By Means Of DSP
  • Electrical Properties -
    • Voltage: 24 Vdc
    • Current: 250 mA
  • Regulatory -
    • FCC Part 15, Class A
Input:
  • Analog Device Line Interface -
    • Connects to FXS, Station or Extension
Click here to view Valcom's VIP-820 Network Trunk Port PDF.




IP Telephony Based Loudspeaker Paging Integration

  • Using VIP-820 Trunk Port with Cisco ATA-186, Analog Telephone Adapter to control remote loudspeaker paging circuits
  • Using VIP-800 Audio Page Port to provide paging signal audio distribution over the LAN/WAN to remote buildings/areas

Overview:
The Valcom VIP-820 is used to interface IP Based phone systems to overhead loudspeaker paging speakers. When connected to an IP Based analog station (phone) adapter, the VIP-820 provides zone paging control and audio signal routing of overhead voice pages. The audio signal is then transported over the network and received by VIP-800 audio adapter(s) located in different areas. The VIP-800 simply plugs into the nearest LAN/WAN port in any location, providing the audio signal path to activate the local area paging loudspeakers. User can access overhead paging from any IP phone and send voice pages to individual zones, groups or facility wide ALL CALL. Valcom speakers use structured cable for easy installation.

VoIP Phone Loudspeaker Key Benefits:

  • Installs overhead paging using LAN/WAN
  • All call and zoned paging operation
  • Low cost IP phone integration using SLT adapter for paging operation
  • Network ALL your buildings for paging without paying leased line PSTN charges!

System Design Notes:

  • 1. Cisco ATA-186, Analog telephone adapter connected to VIP-820, providing IP telephone paging access and control.
  • 2. VIP-820 connected Cisco ATA-186 providing IP telephone handset 1-way paging access.
  • 3. VIP-800 connected to a zone of V-1080 Flexhorn paging loudspeakers using VP-6124 power supply.
  • 4. VIP-800 connected to a zone of V-1030C paging horns using VP-6124 power supply.
  • 5. VIP-800 provides audio output and contact closure. Connection to remote amplifier may vary by manufacture and require additional components. Contact Valcom Tech Support for further assistance in determining exact requirements.

Click here to view Valcom's IP Telephony Based Loudspeaker Paging Integration PDF.

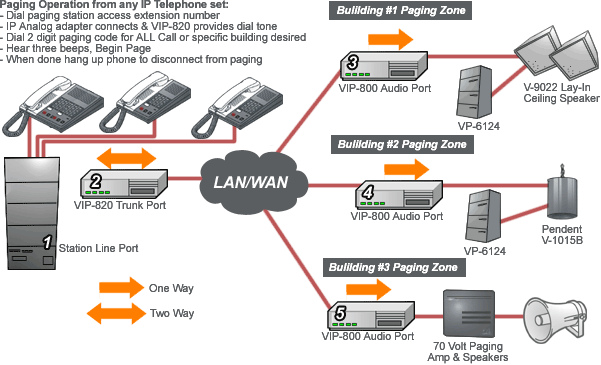

PBX Station Level Access Loudspeaker Paging System

  • Using VIP-820 Trunk Port with any PBX Analog Telephone Station Port to control remote loudspeaker paging circuits
  • Using VIP-800 Audio Page Port to provide paging signal audio distribution over the LAN/WAN to remote buildings/areas

Overview:
The Valcom VIP-820 is used to interface PBX analog station telephone ports to overhead loudspeaker paging zones. When connected to PBX Station Line position, the VIP-820 provides zone paging control and audio signal routing of overhead voice pages from the PBX. The paging audio signal is then transported over the network and received by VIP-800s in remote areas. Valcom VoIP adapters plug into the nearest LAN/WAN port in any location, providing the paging signal path between PBX key telephones and paging loudspeakers. User can access overhead paging from any PBX phone and send voice pages to individual zones, groups or facility wide ALL CALL.

VoIP PBX Station Level Access Loudspeaker Paging Key Benefits:

  • Page from any PBX telephone set
  • Install overhead loudspeaker paging using your LAN/WAN
  • All call and zoned paging operation
  • Low cost PBX station line access providing One-way paging operation
  • Network all your buildings for paging without paying leased line PSTN charges

System Design Notes:

  • 1. The PBX analog station SLT port is connected to VIP-820, providing keyset telephone paging access and control.
  • 2. VIP-820 is connected to SLT extension port providing PBX telephone handset 1-way paging access.
  • 3. VIP-800 connected to a zone of V-9022 Lay-In ceiling paging loudspeakers using VP-6124 power supply.
  • 4. VIP-800 connected to a zone of V-1015B Pendant paging speakers using VP-6124 power supply.
  • 5. VIP-800 provides audio output and contact closure. Connection to remote amplifier may vary by manufacture and require additional components.

Click here to view Valcom's PBX Station Level Access Loudspeaker Paging System PDF.

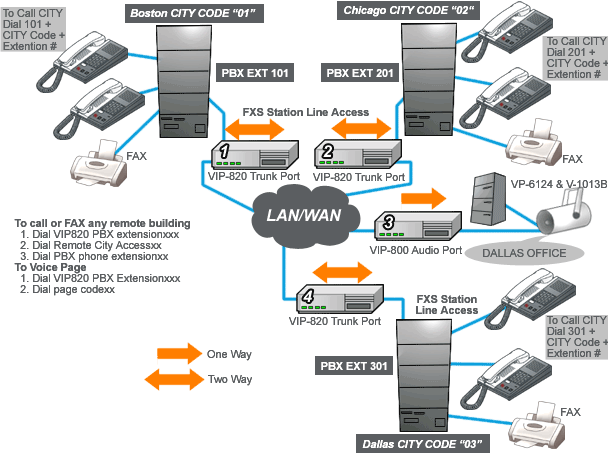

PBX to PBX LAN/WAN Station Level Tie-Line Interface

  • Using VIP-820 Trunk Ports with PBX (XS) Station Lines to provide telephone communications loudspeaker paging control
  • Using VIP-800 Audio Page Port with Valcom speakers to provide facility loudspeaker paging

Overview:
Valcom VoIP products provide LAN/WAN connectivity for loudspeaker paging and telephone tie-line communications. The VIP-810 is used with PBX (FSX) Station Lines to network remote PBX systems over the LAN/WAN to eliminate PSTN line charges. Any network phone can dial remote VIP-800 paging point(s) for all call or specific group or zone loudspeaker paging. The VIP-820 Trunk Port provides station to station level access for voice and FAX communications. Using VoIP solutions has been probed to be both reliable and effective in controlling rising utility telephone line costs.

PBX to PBX (FXS station) Tie line LAN/WAN Key Benefits:

  • Use your LAN/WAN infrastructure to network PBX systems for free calls (NO PSTN remote charges)
  • Low cost FXS Station Level access integration
  • Make and receive calls from any network extension
  • FAX and voice compatible
  • Add on loudspeaker paging using VIP-800 Audio Port

System Design Notes:

  • 1. VIP-820 connected to (FSX) Station Line #101 providing handset paging and 2-way telecom with remote telephones.
  • 2. VIP-820 connected to (FSX) Station Line #201 providing handset paging and 2-way telecom with remote telephones.
  • 3. VIP-800 connected to a Paging zone of V-1013W Track-Style 1-way paging speakers with VP-6124 power supply.
  • 4. VIP-820 connected to (FSX) Station Line #301 providing handset paging and 2-way telecom with remote telephones.

Click here to view Valcom's PBX to PBX LAN/WAN Station Level Tie-Line Interface PDF.
