Nonmetallic Raceway

Wiremold 5400 Series Raceway provides wire and cable management for data, voice, video, and power applications. For school and office applications, this is an ideal solution for providing flexibility and accessibility of wire and cable.

Features and Benefits:
  • Large cable capacity in a low profile design. Accommodates needs now and in the future.
  • Twin Snap cover. Complete segregation of access to power and low voltage services for installation flexibility.
  • Corner drop feed. Provides solution for feeding horizontal runs of raceway.
  • 2" [51mm] bend radius compliant fittings. These fittings snap on to overlap raceway base and cover for an aesthetic installation. Fittings are UL verified for a 2" [51mm] bend radius and exceed the recommendations of TIA/EIA 569-A. They provide cable protection in lay-in and pull through cable installations.
  • 5400TB Available prewired. Manufactured to specified job site lengths, raceway comes completely prewired, ready to install. Jobs can be packaged by area, floor, or building and shipped per job site requirements.
  • Electrical device identification for prewired jobs. Eliminates guesswork and circuit tracing to speed additions and renovations.
  • A/V compatible. 5507 Series Faceplates provide A/V compatibility for 5400 Series Raceway installations.
  • Pre-punched mounting holes. Faster and easier raceway installation.
  • 5450-ORAP Bracket accommodates wireless. Designed for use with Ortronics® Wi-Jack™ Wireless Access Points.
  • Device mounting in-line, offset or both. Offers flexibility and up to three separate services at the same location.
  • Made of PVC material. Lightweight and easy to cut. Meets UL flammability requirements. UL Listed for up to 600V.
  • Ivory, white, and fog white finishes. Blends with any decor. Consult factory for custom colors. Paintable using latex paint.
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point of use.
  • UL Listed.
Often used by small businesses, hospitals, medical offices, restaurants, and retail.

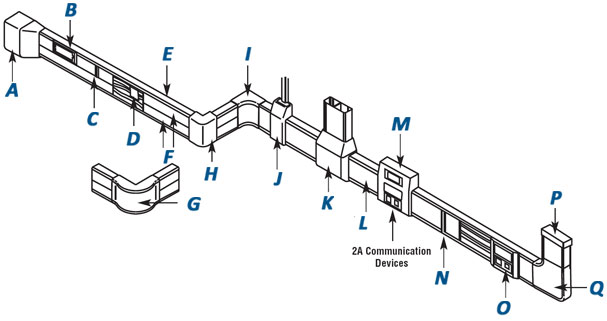

5400 Series Raceway System Layout

NOTE: Illustration is for showing product applications only.

A Bend Radius Divided Entrance End Fitting5410DFOA J Transition Tap Fitting5474
B Faceplate Insert Bracket/Trim5450T K Tee5415K
C Twin Snap Cover Clip5406TC L Full Width Cover5400CL
D Wire Clip5400TWCD M Dev Bracket5450A3
E Two Compartment Base5400TBE N Cover Clip5406AN
F Twin Snap Cover5400TCF O Device Bracket5450
G External Elbow5418FO P Blank End Fitting5410P
H External Elbow5418 Q Bend Radius Full Capacity Flat Elbow5411FOQ
I Internal Elbow5417FO
